OBJ as Trim color

Follow

cj

• 2020年05月13日 17:26

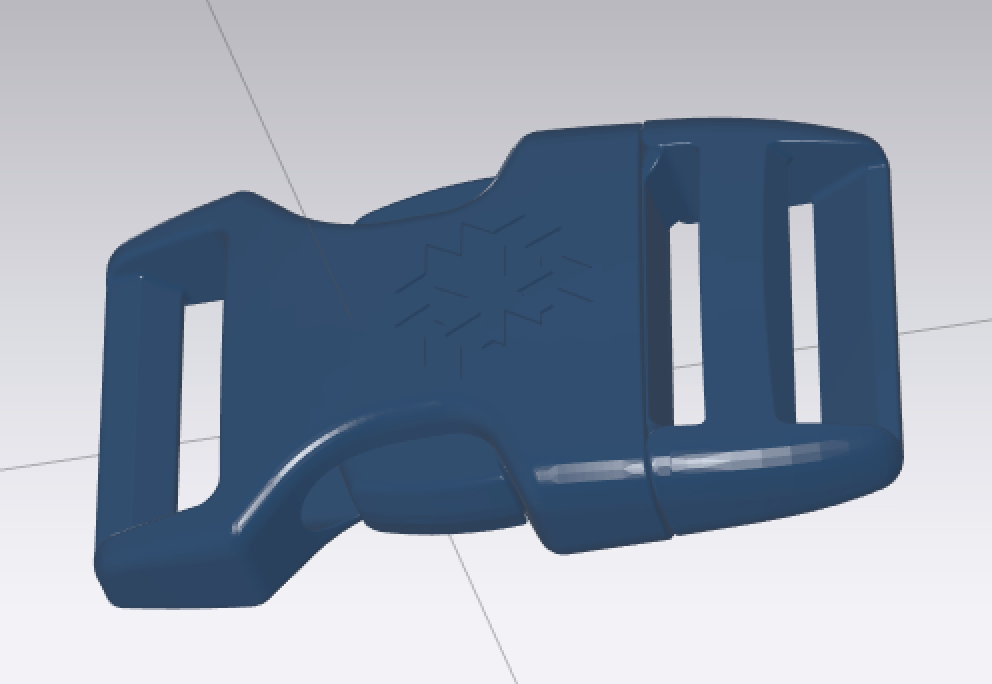

I imported an OBJ as a trim and the color is weird. I select the OBJ and add color, it has different shades instead of a consistent color:



Any thoughts on how to make it all one consistent color?

0

• pablo.quintana

  • 2020年05月13日 19:08

  The OBJ's UV map and normals seem to be all over the place. This is something you'll have to check back in the software where the OBJ was created.

  0
• cj

  • 2020年05月13日 21:09

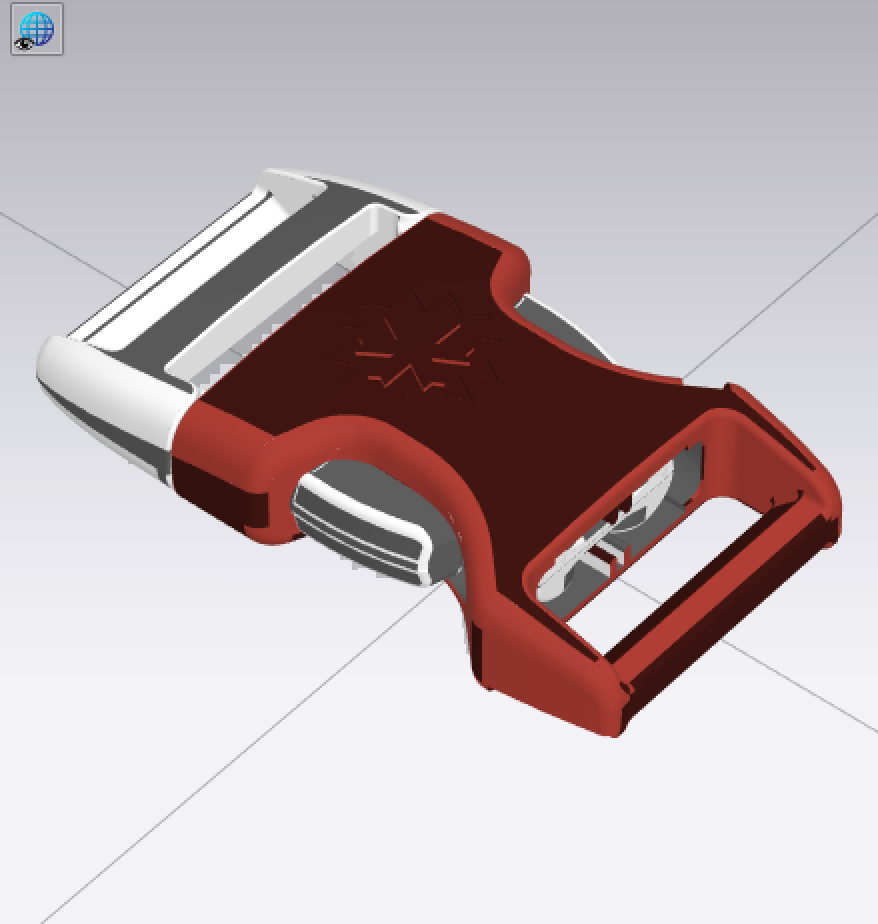

  You're totally right. I went back and started with a STEP file rather than an IGS file. Other than the low number of polygons, t worked great. I'll do another export with better resolution:



  0
