topstitch on a curved surface

Follow

rockyshark007

• 2021년 08월 24일 08:34

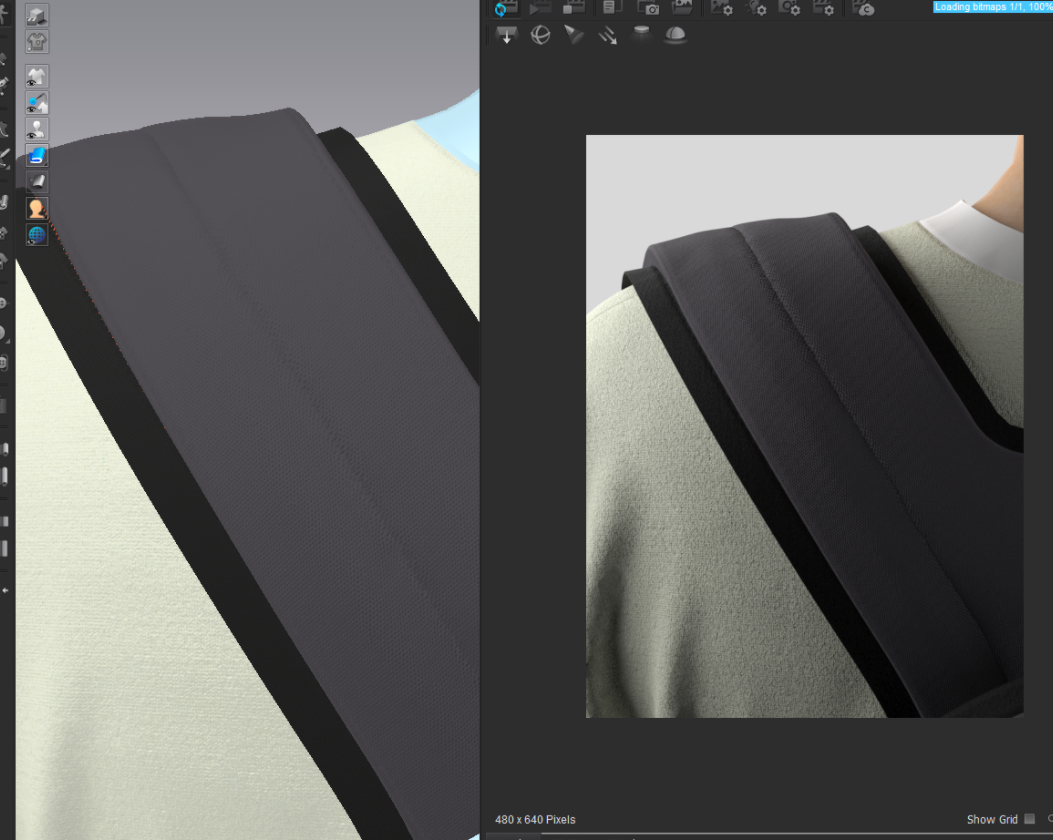

Hi, i'm having a lot of trouble to set topstiches when the surface is not flat. Here an example:

here is with particolar distance 20, the topstiches is not nice:



here i put particolar distance 2, the topstiches disappear.

Marta

0

• CLO Designers

  • 2021년 08월 24일 14:02

  Hi rockyshark007,

  thank you for submitting your question. Your issue could be related to Addt'l Thickness (Rendering) you might have added to your pattern piece or a displacement Map.

  In order to make sure the topstich on top of it stays visible and won't get 'swallowed' in the rendering by your fabric thickness or an applied displacement map, make sure to set the Z-Offset of your topstitch accordingly.

  Please check example below:

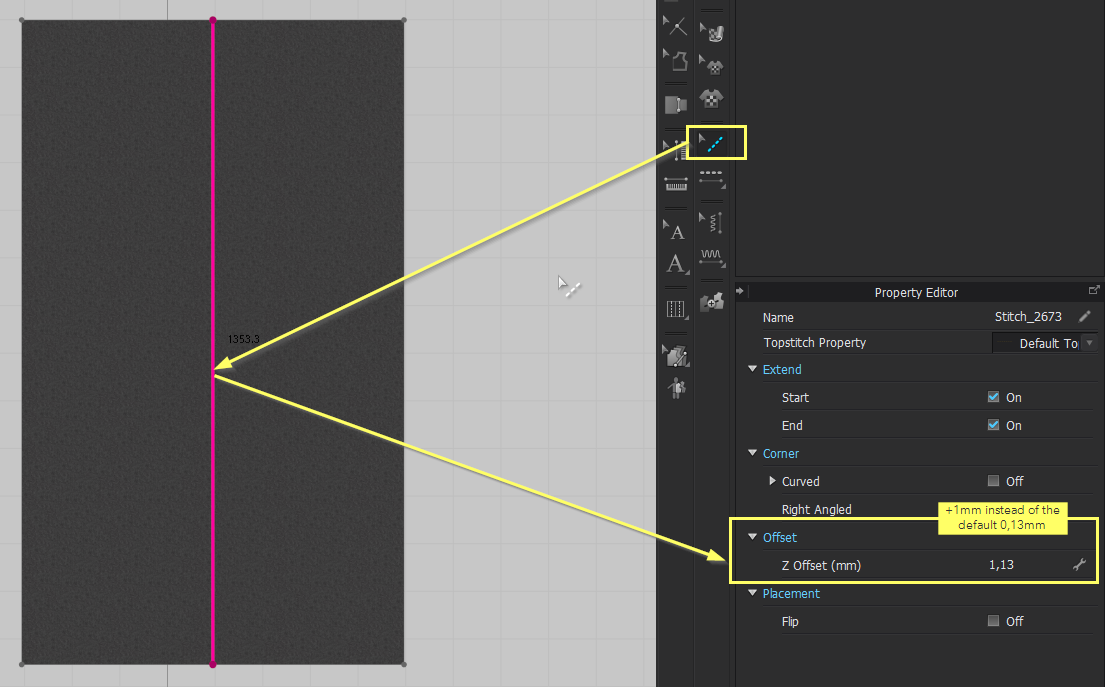

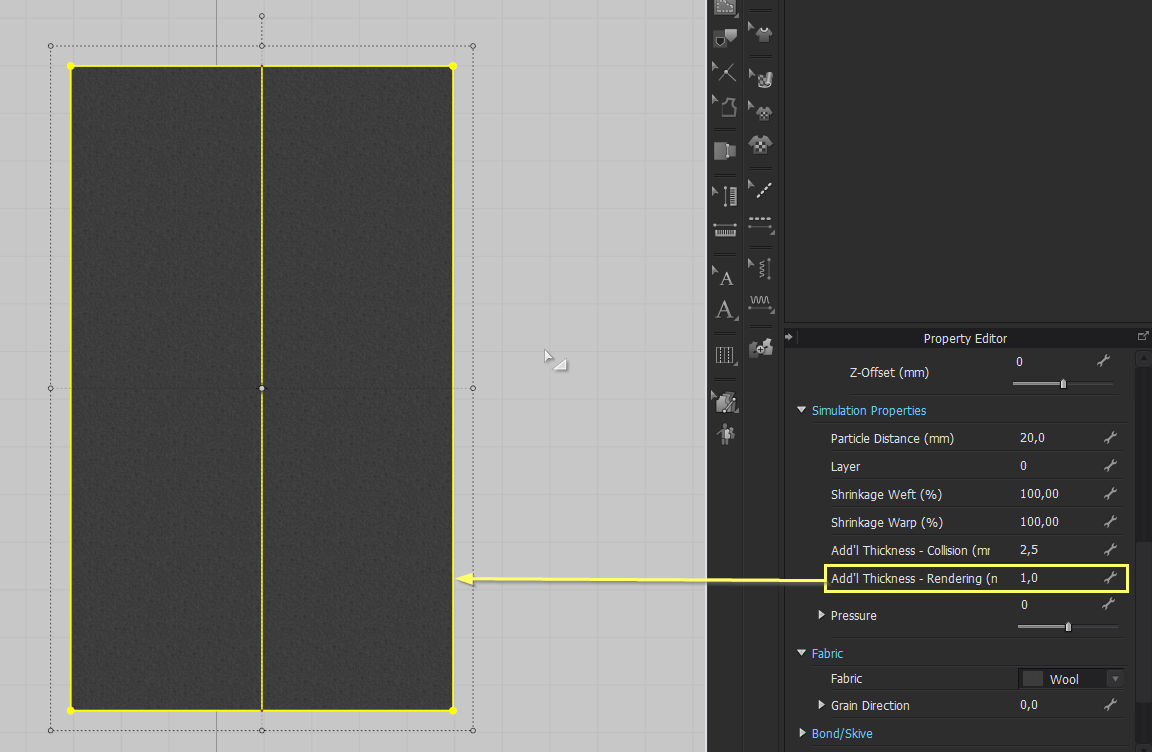

  I have 1mm addt'l Thickness - Rendering applied, so I need to make sure, my topstich Z-offset is +1mm higher than usual:

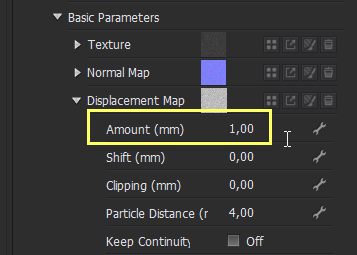

  In case, you're using a displacement map on your fabric, set the Z-offset slighty higher than the amount of your displacement map, in my case again +1mm:







  I hope these examples help. Feel free to reach out, if you have any further questions.



  Best regards
