Set up for "zero gravity"

Follow

skueffne

• June 13, 2021 05:28
• Edited

Dear Community,

I would like to ask if anyone knows values for the simulation properties that will ensure that even the smallest cut pieces only move minimally. I would find something like this useful, for example, to collect multiple garment labels in a CLO file as a kind of library.

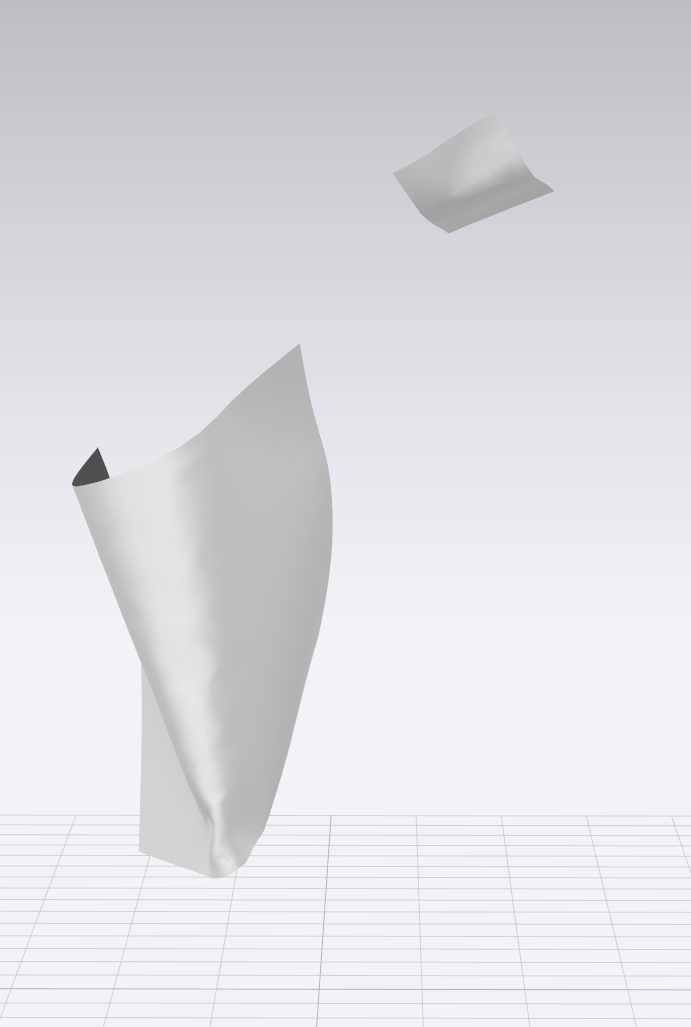

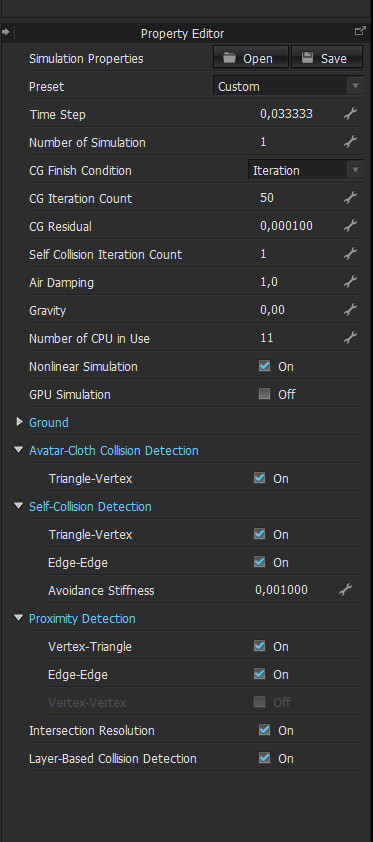

I have already used different values for gravity and air damping, but the pattern pieces always end up flying around in the 3D window.

Does anyone know a trick?



0

• ottoline

  • June 13, 2021 06:01

  make sure you don't have pressure applied to one side of any pattern pieces and that the wind generator is switched off in the simulation.

  0
• skueffne

  • June 13, 2021 06:37

  Hi ottoline,

  thanks for the quick answer - but the wind generator and also pressure have been off by default

  0
• ottoline

  • June 13, 2021 08:18

  Switch to CPU simulation best quality and change all patterns to layer 0.

  0
• skueffne

  • June 13, 2021 09:17

  Thanks so much! You are really kind.

  0
• mail

  • October 24, 2023 19:42

  Hi.  I would also like to know where to get a handbook to learn about all that properties above. My silk jersey is also bouncing insanely, while animation mode and simulation.

  0
• mail

  • October 24, 2023 19:43

  How do I make sure that no pressure is applied to any pattern?

  0
• CLO Designers

  • October 25, 2023 08:14

  Hi mail,

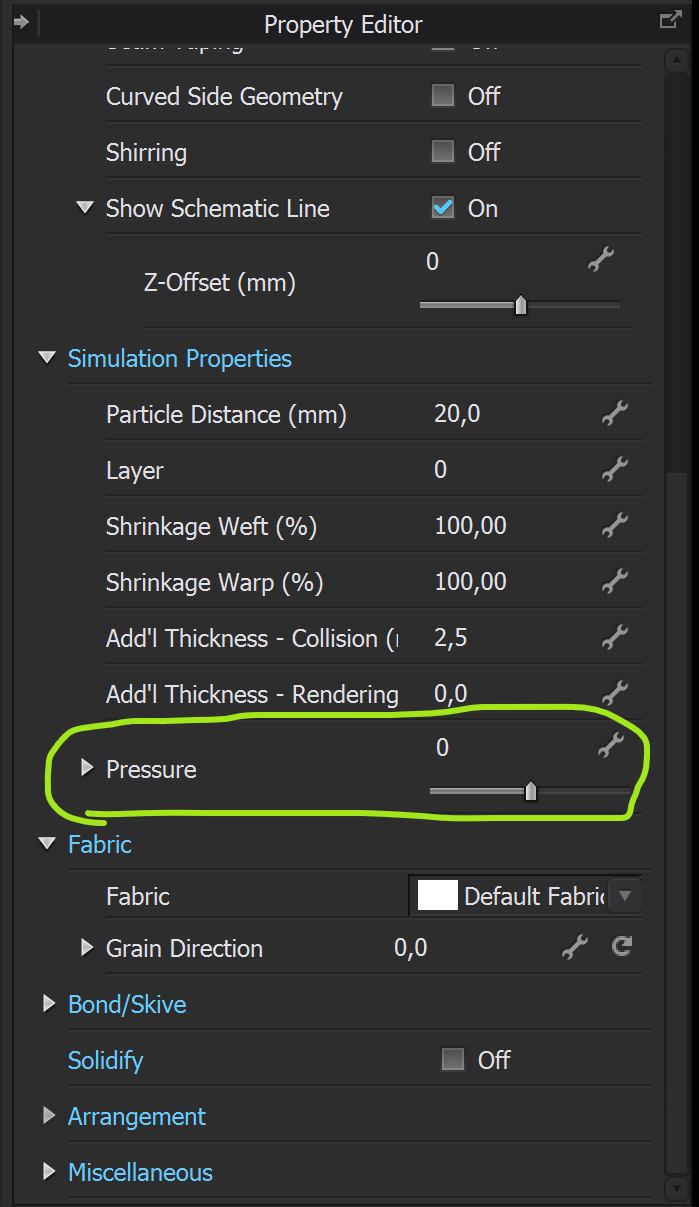

  Select all pattern pieces and check the Pressure value in the PE.



  Pressure = 0 is the default setting.

  0
