Top stitch isn't neat.
Hi Everyone
The topstitch on the placket isn't neat. It hasn't got a good pitch and the stitch line is rattling.
Please help me how to fix it. Thank you!
-

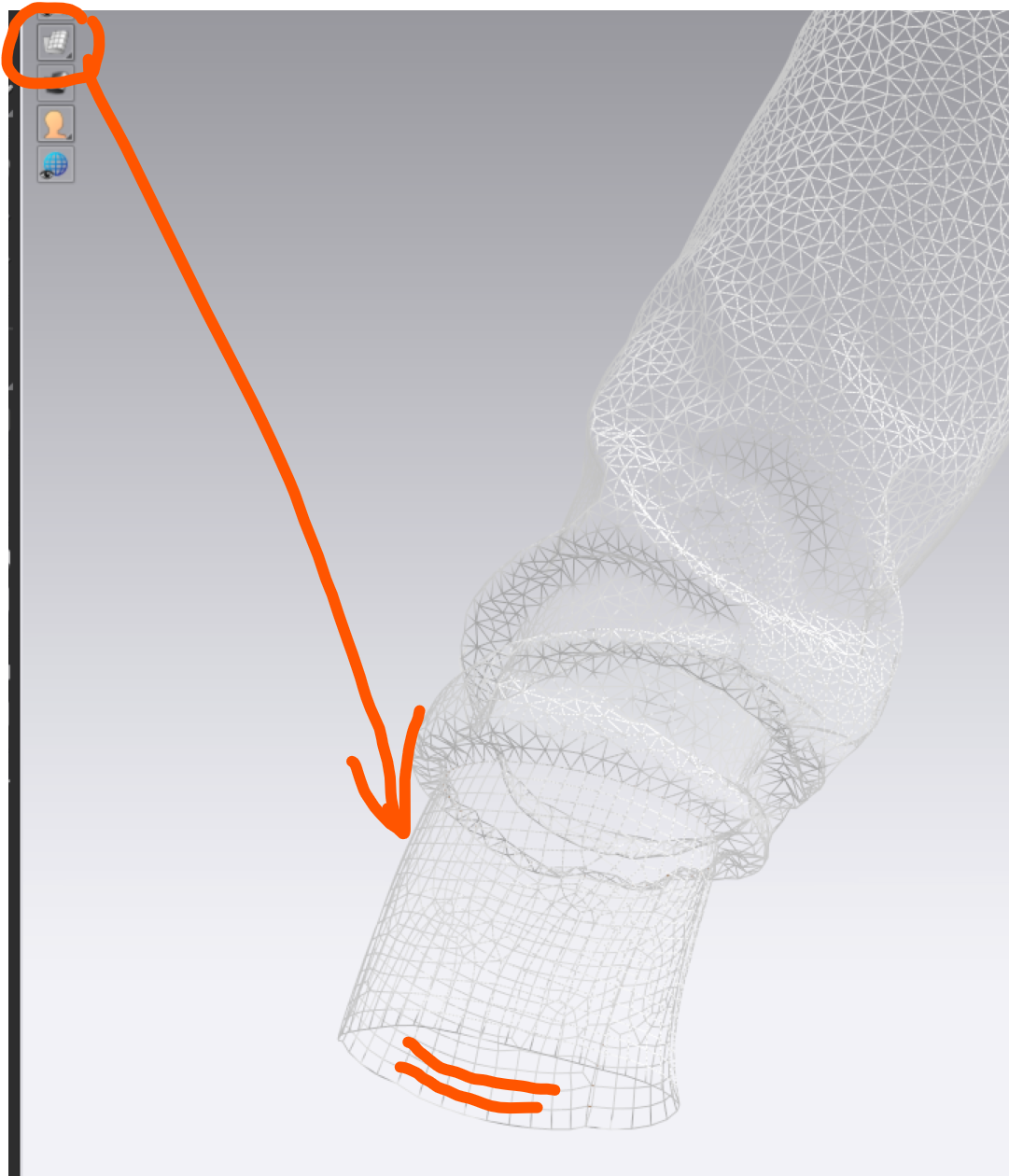

Go into mesh view and check if the underlying polygons are jagged. If so, a suggestion is to turn the front placket into Quads instead of triangles and/or add an internal line where the topstitching goes, that should straighten the the underlying mesh so the stitches are not jagged.
0 -
Thank you, Pablo! I'll try it.
0 -
On that front placard you have a sewing edge normal very close to the seam stitch line, normals or folds lines will create a perturbed stitch when sat near the normal that both these elements create, so I would dial down the normal radius on the sewing line edge so it is smaller > (see property editor ) so the stitch does not sit directly on the fringe of any pattern piece sewing normal.
0 -
Thank you, ottoline! I changed it to triangles to quads what Pablo said. It works well. I will also try your way as well.
