Open Texture Editor

Image Layer

Canvas Settings

Image Properties

Preview Settings

Apply Texture

Save Texture Image

Express complex graphics by overlaying multiple images. When images repeat, create seamless graphics by editing their outlines while referring to the preview.

Watch Tutorial Video

Open Texture Editor

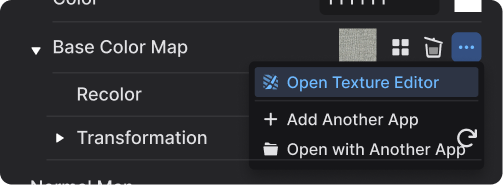

1. In the Property Editor, click the More icon at the far right next to a map, then click 'Open Texture Editor'.




Image Layer

1. Set the image layer in the list of layers at the bottom left of the Texture Editor.


   Option	Description
   Add	Click the Add button to add the image as a new layer.   Select and Import desired artboards and layers from AI/PDF files.
   Copy	Select the added layer and click the Copy button to copy it.
   Lock	Click the Lock button to lock the layer so that it is not edited.
   Layer Order	Click and drag the layer to change the order.
   Show	Click the Show(eye) icon to view or hide the layer on the window.
   Delete	Click the Delete button to delete the layer.
   Rename	Double-click the name of the layer to edit it and press enter to apply it.

Canvas Setting

1. At the top of the texture editor, set up the canvas as needed.


   Option	Description
   Size	Set the width and height of the canvas.  Adjust the canvas size to the size of a specific image by right-clicking of the layer.
   Unit	Set the units of the canvas and image.
   PPI (Pixels)	Set the resolution of the canvas.
   Transparent Background	Set the image to a Transparent Background.

Image properties

1. Set the Image properties of the selected layer in the Properties list at the bottom right of the Texture Editor.|


   Properties		Description
   Paint	Blend	Mix the selected layer with the bottom layer.
   	Color	Set the color of the image.
   	Color Switch	Number	Set the number of colors to extract from the image.
   		Sub Color	Click the extracted color chip to change it to the different color.
   	Opacity	Adjust the Opacity of the image.
   	Desaturate	Remove the color while maintaining the pattern or texture of the texture image and change it to another color.
   Repeat	Repeat	Repeat the image.
   		Space / Shift	Adjust the space and shift value between repeated textures.
   	Extend to Other Side	If the image intersects with the grid, extend it to the other side.
   Transformation	Pivot	Set the Pivot position of the image.
   	Position	Move the image based on the Position of the Pivot.
   	Size/Angle	Set the size and angle of the image.
   	Reset	Click the Reset button for the Position, Size and Angle properties to revert back to the original image.

Preview Settings

1. Click the  Preview Settings in the upper right corner of the Texture Editor.
   → The Preview Settings window appears.


2. Set the options below.


   Option	Description
   Show Grid	View or hide the grid.
   Occlude Opacity	Set the Opacity of repeated images in the Preview window.

Apply Texture

1. When the texture editing is complete, click the Apply & Close button at the bottom right of the Texture Editor.
   → The edited texture is applied.



Save Texture Image

1. Click Save Image at the bottom left of the Texture Editor.



2. Click OK to select a folder in which to save the selected images.

Set the Image Format or the Merged Layer Image option.

1. 1. Select the format in which to save the image: PNG, JPEG, or TIFF.

   2. Choose the option Save Merged Layer Image if needed.
