Relocate or adjust length of Topstitches.

Location

2D Toolbar ▶  Edit Topstitch

1. Select the tool/menu indicated.


2. Click and drag a point or a whole segment of the Topstitch to be edited.
   → The Topstitch is moved to the position.



Properties

• Topstitch Style


1. Select the Topstitch Style to change the properties.


   Option	Description
   Information	Enter the information of trim.
   Type	Set the Topstitch type to Texture or OBJ.
   Offset	Adjust the interval between Topstitches on Internal Lines or Pattern outlines.
   Stitch Count	Create various different types of Topstitches up to five at a time.
   	Use Same Specification/ Material	This option to configure multiple topstitches' Specification and Materials.

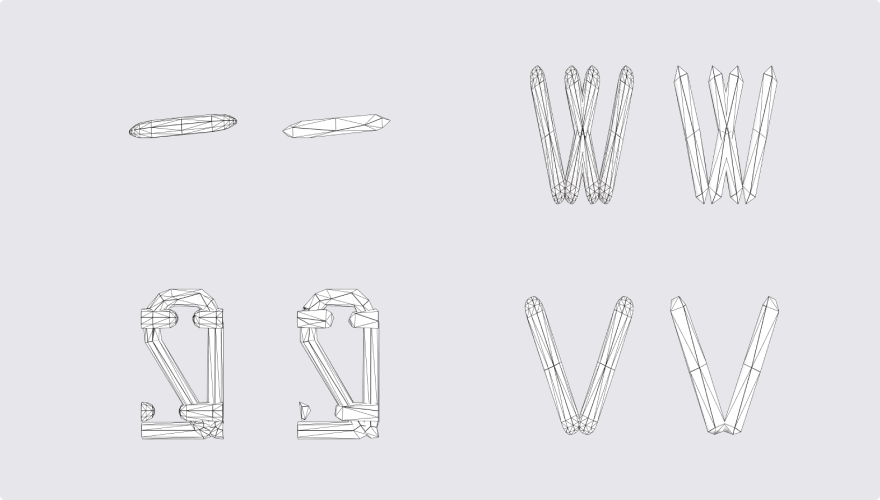

   Specification	Shape	Set the shape of Topstitch.  ※Note:Click the Add OBJ Topstitch button on the right to add and use your OBJ as a Topstitch.(ver 7.1)
   	Set the Lenth(SPI), Space, Thread Thickness of the Topstitch.  ※Note: SPI stands for Stitch Per Inch, meaning the number of stitches within an inch. For example, 'SPI-4' means there are four individual stitches within an inch. For standard garments, SPI-11 is often being used.
   Material	Partially set the material of the trim.
   Configuration	Face	Select the face of Topstitch.
   	Number of Lines	Set how many lines of Topstitches there are for a single style.
   		Distance	It is possible to adjust the distance between the lines. The unit of the length can be set in inch, millimeter(mm) or centimeter(cm).
   3D	The Topstitch is more realistic in the 3D window.

• Topstitch


  1. Click on the Topstitch created in the pattern to change its properties individually.

     Option	Description
     Topstitch Property	Change the style of the selected Topstitch.
     Extend	When the start or end point of a Topstitch does not reach or sticks out of the Pattern outline, extend it to fit to the Pattern.
     Corner	Curved	Set Topstitch corner type to extend the stitch more smoothly at corners.
     	Right Angled	Set the Topstitch to be a right angle in the corner of the pattern.
     	Smooth (ver 7.1)	Set it to continue naturally if the edge of the Topstitch is broken.
     Offset	Set the Z Offset of the Topstitch.
     Placement	Use the Flip function to set a Topstitch on an Internal Shape/Line in a different direction (inside and outside).
