Move

Properties

Objective

Select and move Sewing Lines or set properties.

Location

Main Menu ▶ Sewing ▶ Edit Sewing (B)

2D Toolbar ▶  Edit Sewing (B)

Operation

Move

1. Select the tool/menu indicated in Location.

2. Click the point or segment of Sewing Line ▶Drag it.
   Or, right click to enter the Distance Moved while moving.

Properties

1. Click the Sewing Line and set the properties.


   Properties	Description
   Sewing Line Type	Custom Angle	Set the Angle and Strength of Sewing Line.
   		Fold Angle	180° represents a flat state. The internal line is folded towards the front of the pattern as the fold angle is closer to 0˚, and is folded into the back of the pattern as the angle is closer to 360˚.
   		Fold Strength	The intensity of the fold is able to be set by adjusting the value of Fold Strength. The higher the value, the closer the fold is to the set angle. When a jacket and its lining are sewn together, the sewn area inflates due to the default sewing angle and intensity values. In this case, sets the Fold Strength to 0 to flatten the sewn boundaries.

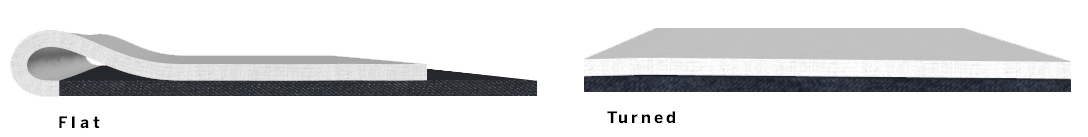

   	Turned	Sew two layers of pattern flatly. After selecting sewing lines, press the`key on the keyboard to immediately switch the Sewing Line Type. If it is set to Turned, it is not able to adjust the Fold Angle/Strength.
   Tension	When the 3D garment is expressed as being stretched more than the actual garment, adjust the Tension of Sewing Line.  Same as actual concept, Tension is applied based on the short or long side with the Ease and Stretch options.
   	Strength	Increase or decrease the strength of the sewing tension by entering the value. The result may vary depending on the Strength even with the same Ratio value.
   	Ratio	Adjust the sewing tension's ratio to express varying drape effects by different sewing methods.
   Set Sublayer	Assign orders to the Sewing Lines on a Pattern which folds on itself such as seam allowances and pleats in order to increase simulation stability.
   	Reverse Direction	Swap the fixed Sewing Line and the moving Sewing Line.
   	Sublayer	Decide which side of the fabric is attached to the fixed Sewing Line.
   Topstitch/ Puckering (ver 7.3)	Applying the Topstitch and Puckering to the seam lines to create a variety of seam lines. You can save a sewing line with the properties applied and easily apply it to other sewing lines.

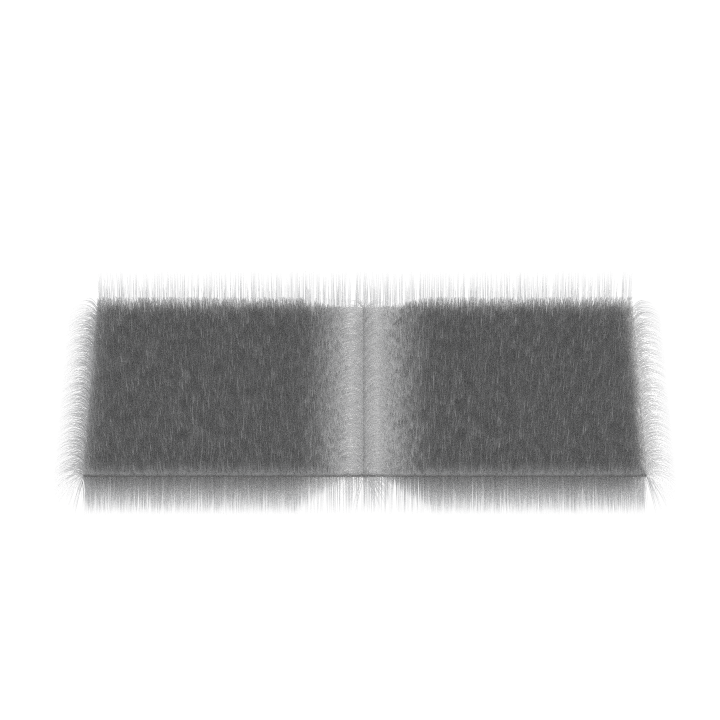

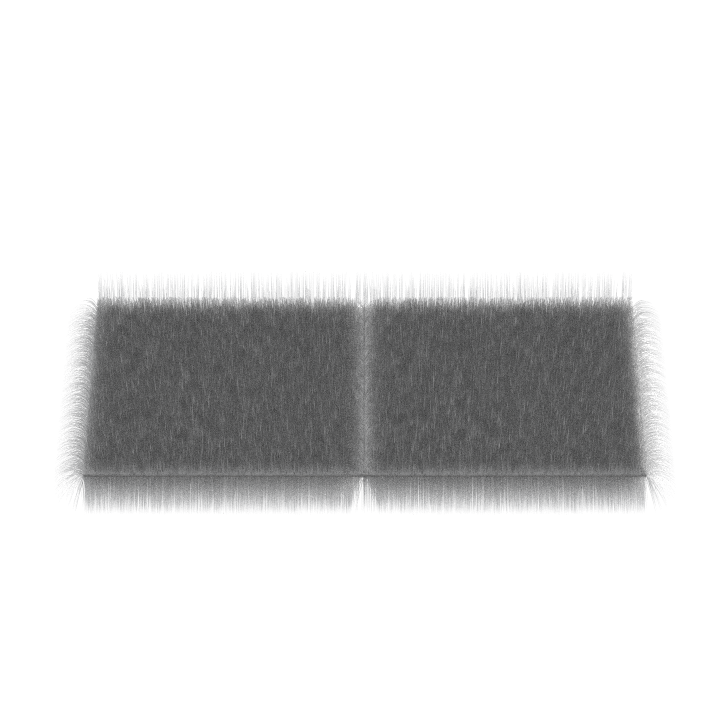

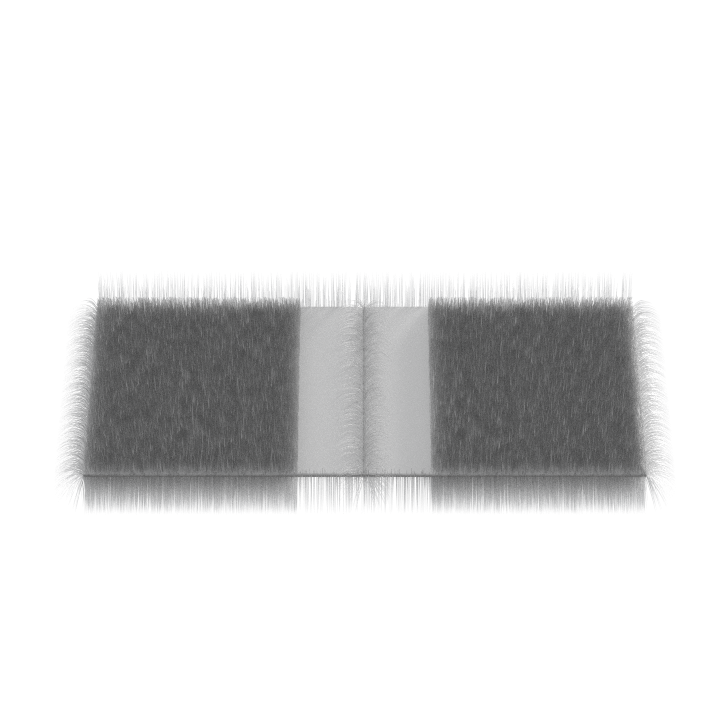

   3D Seamline	Set the direction of seam allowance.
   	Normal Map	Select an image to be used as the Normal Map.
   	Intensity/ Thickness	Adjust the intensity and thickness of the Normal Map applied to the seamline.
