What should I do to make a 3d image with a grid-patterned mesh like the attached picture?

Follow

hello8947

• 2021年03月08日 14:52
• 編輯於

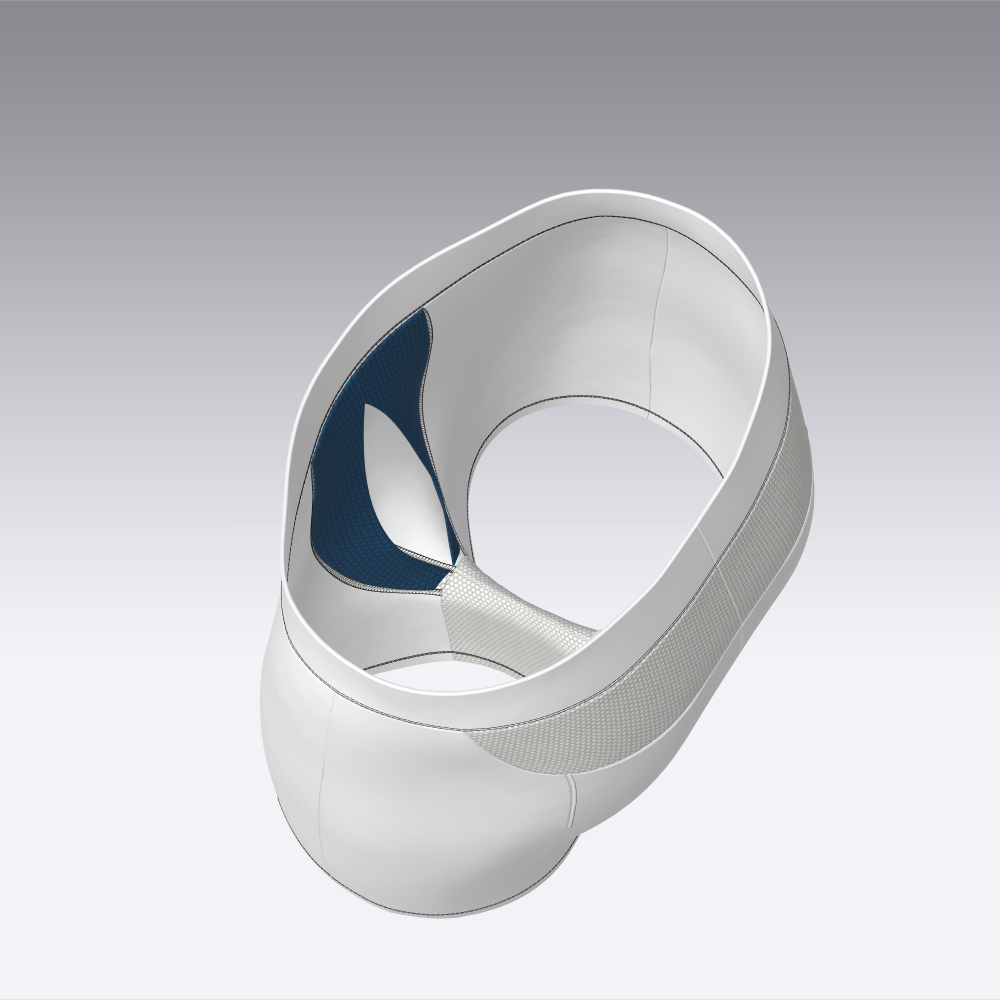

I'd like to make 3d clothes with plaid patterns like this. How was it made? Currently, we have made a drawers shape, but I don't know how to make a 3d shape with mesh.

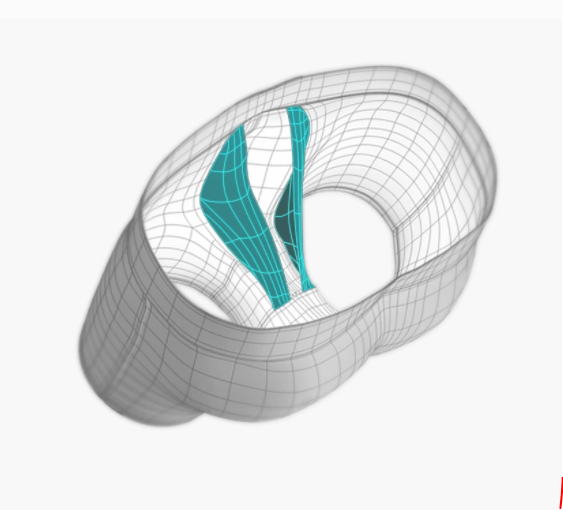

The image I want

I'm done here.

0

• CLO Designers

  • 2021年03月08日 19:14

  Hi hello8947. You can turn on mesh view the in the 3D toggle menu to see your 3D mesh. But if you want to add a plaid you will need to make a plaid texture(print) and then apply that to the fabric. We hope this helps

  0
• pablo.quintana

  • 2021年03月09日 14:11

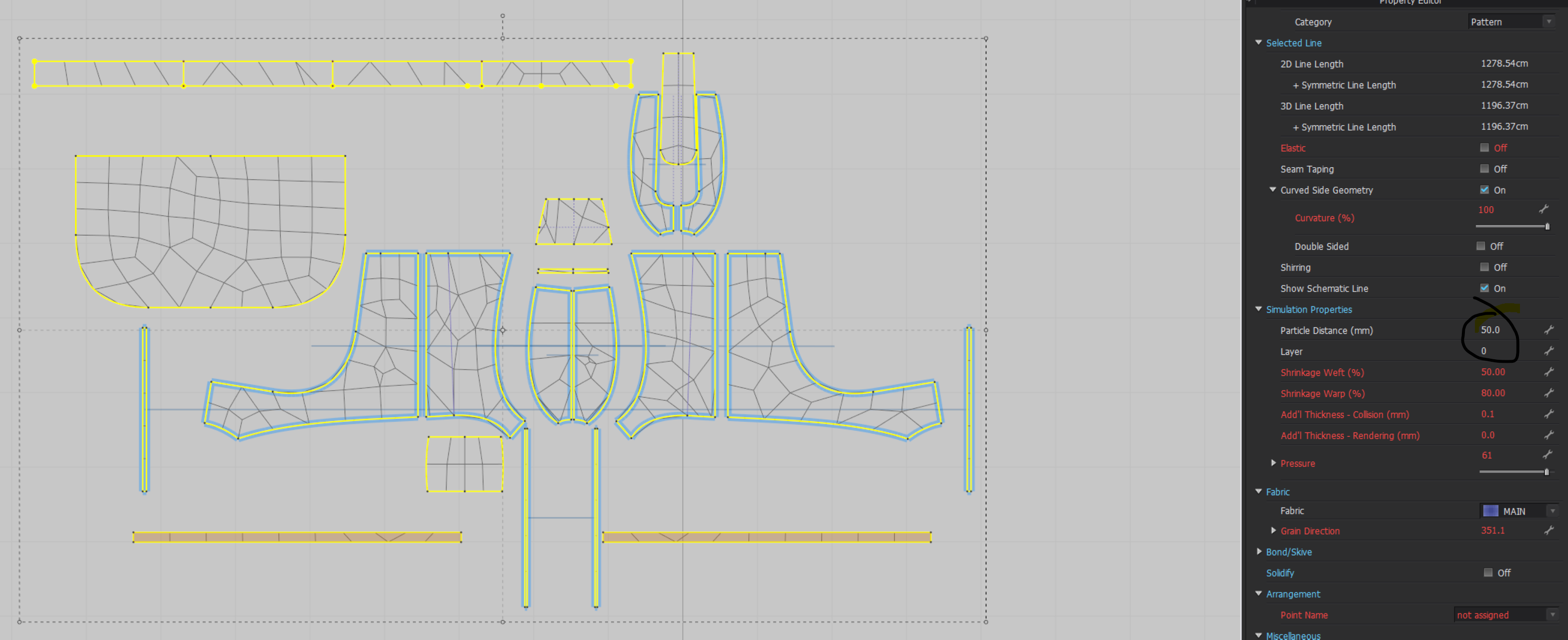

  I would apply the "mesh" texture on the 2D window and then export this image as the texture which is then applied back to the pieces. See here with particle distance 50 just to have the effect of wireframe. If the lines are not what you want, you could use the UV Map generated from the exported texture to manipulate in Photoshop and then import back to CLO.



  0
