Gap between puckering image and seam

Follow

maichee

• 2021年11月01日 11:21

Hello everyone!!

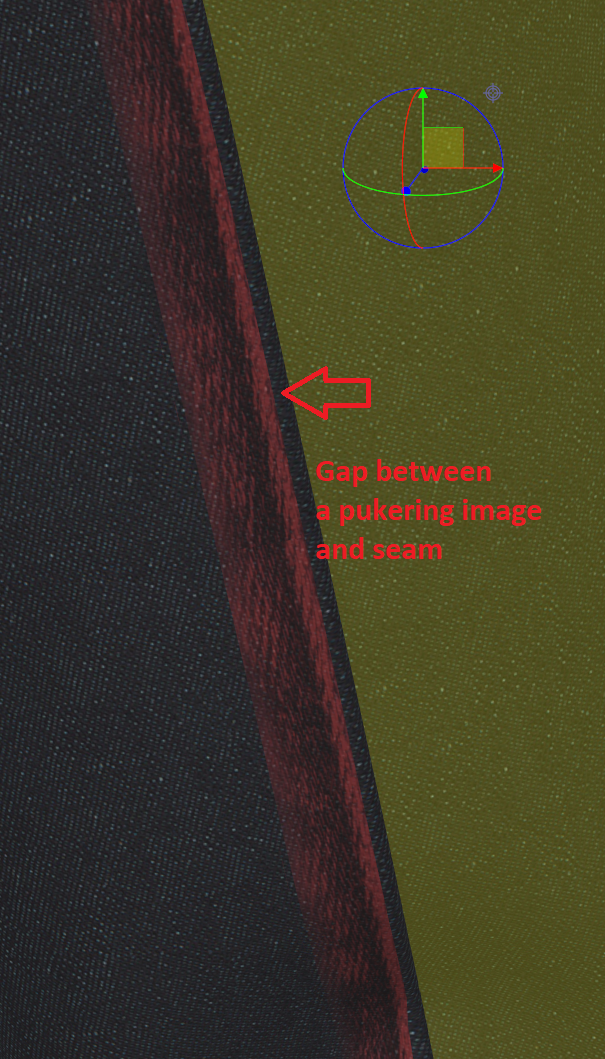

I've made a puckering texture image and applied it at the inside seam however little gap between the puckering image and seam.

Please let me know how to get rid of the gap. I've e changed the thickness of the fabric or the width of the puckering image but the gap still remains.

Thank you!





0

• ottoline

  • 2021年11月02日 22:45

  Check your curvature setting for the patterns edge >> property editor.

  See my notes: >> Link to Post



  0
• maichee

  • 2021年11月04日 14:00

  It works. Thank you!

  0
• ottoline

  • 2021年11月04日 21:30
  • 編輯於

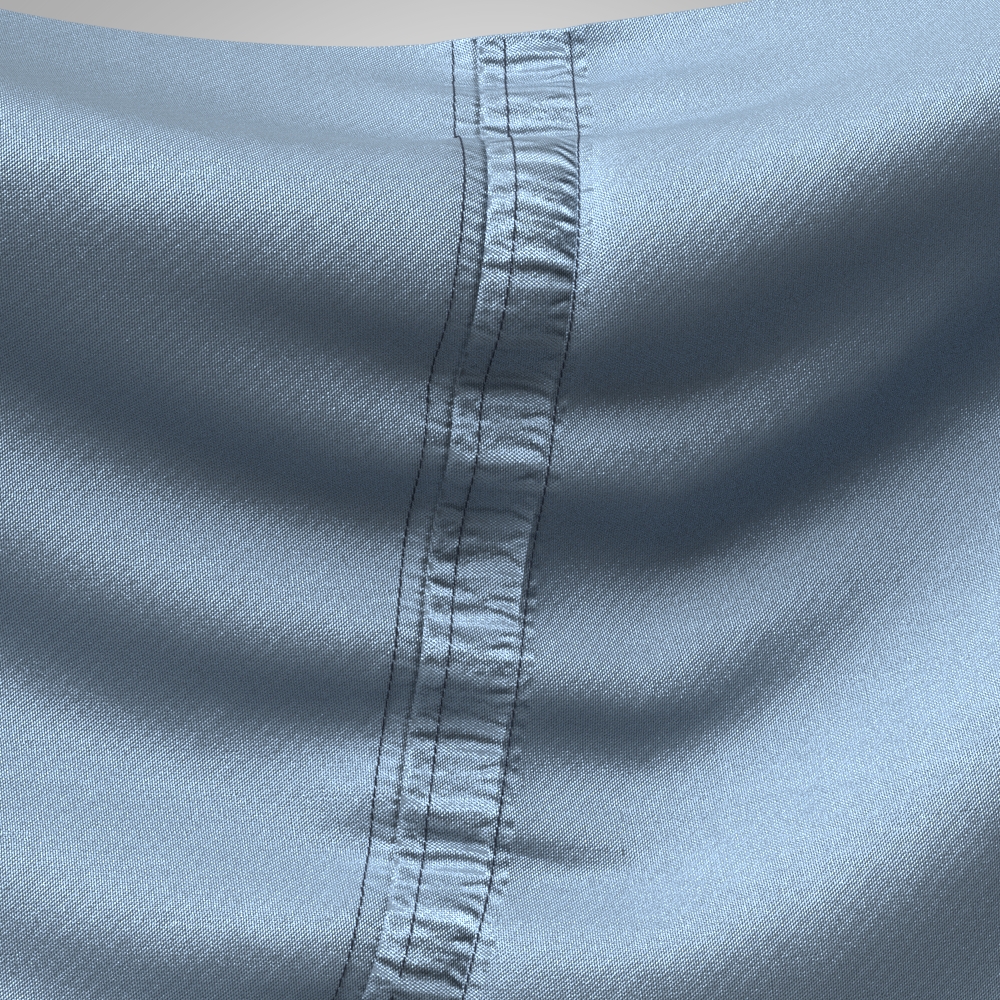

  My pleasure > once you get to a certain level of experience with CLO3D/MD you need to start looking into how you can fine tune the many settings, as this will improve your workflow away from the default settings > in this case all patterns come with default edges set to 'curved', so where you need pattern edges that butt together with pucker you need to switch that back to square so the normal for the pucker sits against the mating pattern pucker edge as it will not roll around the curved thick pattern edges. (A quirk of using the CLO3D thickness render setting).
