How to see sectional view

Follow

r901207

• March 11, 2021 15:28

I wonder there is any tips to see cross-sectional view (ex. at bust line or waist line).

As I know, it has to be exported as obj and see with other 3d programs.

Anyone knows the way to see in Clo?

0

• CLO Designers

  • March 12, 2021 07:18
  • Edited

  Hi r901207,

  Thanks for your question. Would you mind explaining the purpose of seeing a cross-sectional view?

  At this moment, CLO doesn't support the function to see the cross-sectional view. To see the cross-sectional view of garment and avatar, users may need to export them to other 3D programs.

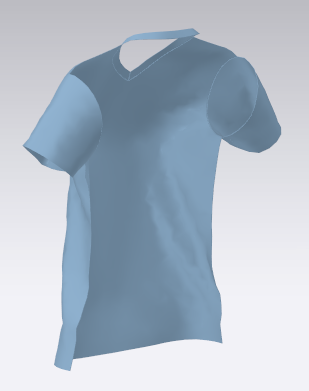

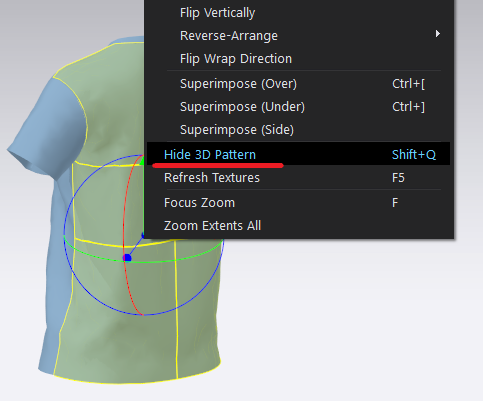

  If you would like to check the inner part of a virtual garment, you can try to hide selected patterns in 3D Window. And you can see the inner part and do further editing.

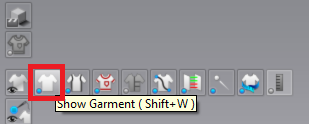

  If you would like to show all the patterns in 3D window afterwards, you can select "Show Garment" in 3D Garment Display menu.





  0
• r901207

  • March 22, 2021 18:44

  Thank you! Your answer is enough for me. I wanted to see cross-sectional view at bust and waist line.

  I checked by other 3d program.

  0
