Cap Visor

Follow

Mattia Buccarelli

• May 06, 2020 14:33

Hello everyone!

I'm trying to create a baseball cap but i'm having a lot f trobles with the visor that it does not bend in the correct way.

I can't keep the RIGHT ANGLE between the visor and the forehead and the right  VISOR BEND.

Reference:

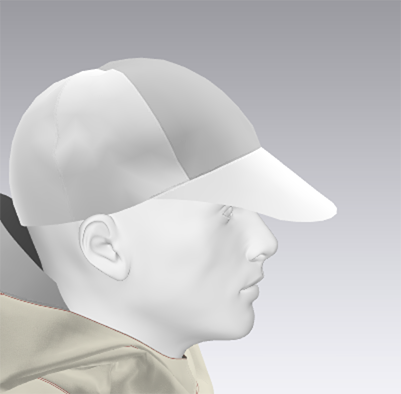

Instead this is the result that i achieved in clo:

I worked around with the material properties but nothing changed.

Somebody know how could i fix this problem?

Thanks in advance!



0

• Official comment

  CLO Designers

  • May 06, 2020 15:04

  Try this; When adding the brim, first use your Arrangement Points somewhere on the body to give you the shape you are looking for. I used the Bicep.



  When you have the shape, move the brim into place. In the 3D Window, RClick and SOLIDIFY the shape. This will keep your curve.



  Also Increase the Add'l Thickness Rendering so the Brim looks right. Finally Simulate. As long as it's all sewn correctly, it should be fine.
• Mattia Buccarelli

  • May 06, 2020 16:51

  Tank you very much. It worked perfectly!

  0
• CLO Designers

  • May 06, 2020 16:55

  Mattia Buccarelli Great!

  0
