Slider/Puller/Stopper OBJ Registration

Follow

Create OBJ

Register OBJ



Objective

Register your own OBJ file as a Slider/Puller/Stopper.


Location

Main Menu ▶ Materials ▶ Zipper ▶ Register OBJ

Property Editor ▶ Shape ▶ plus_button.png

Operation

Create OBJ

Check the requirements below when making OBJs in other 3D programs.

※   Essential

  • Set the name of the MESH to Slider and Puller when creating an OBJ with a slider and a puller.
  • For each type, adjust the position to suit the meaning of the axis.
    (If the position of the axis is not correct, the OBJ may not be loaded in the correct position)

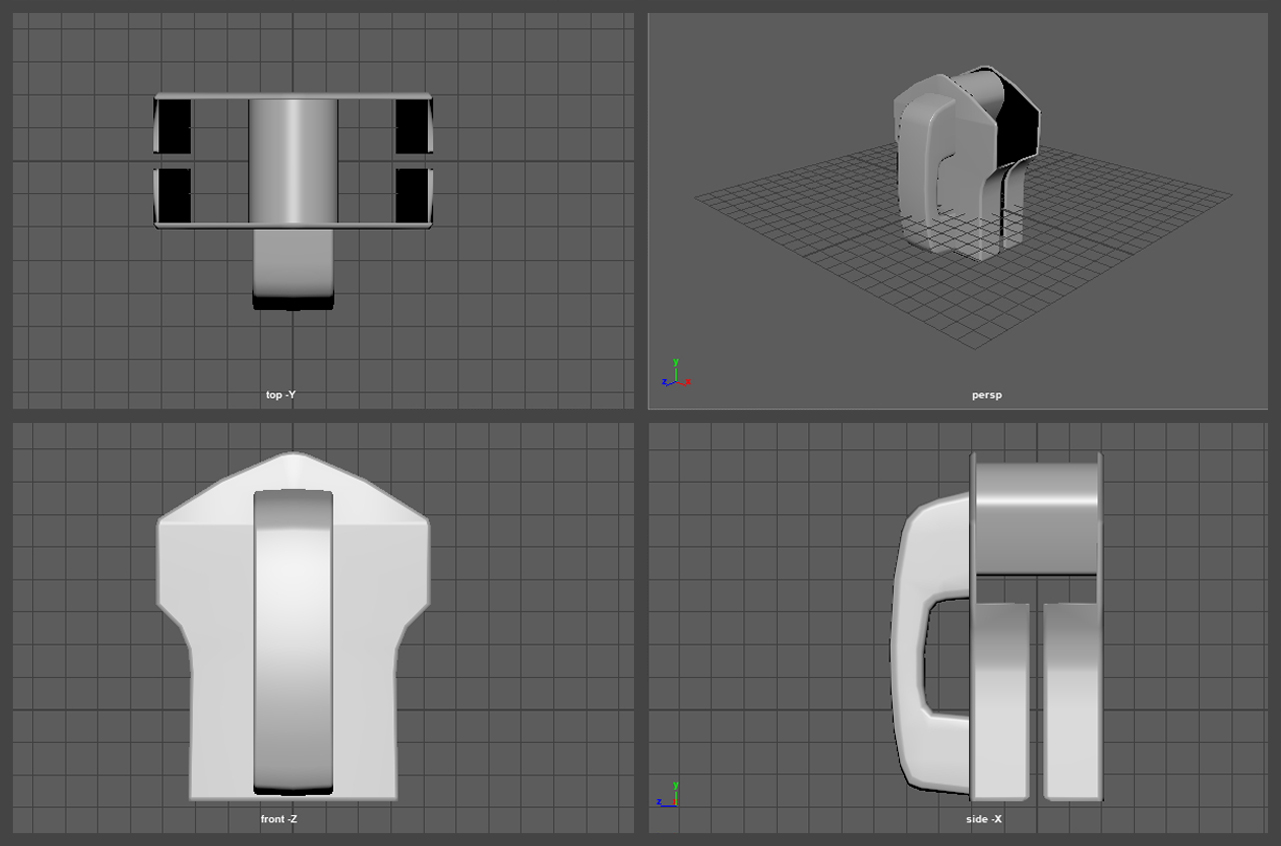

    Slider
    X-Axis Position the shoulder of the slider where zipper teeth insert on the X-axis 0.
    Y-Axis

    The direction the slider moves is the Y-axis,

    Position center of the slider where the center of the zipper teeth aligned at 0 of the Y-axis.

    Z-Axis Position the Z-axis 0 where the side of the zipper teeth is located.

    Stopper
    The stopper configured on both sides must be made to be the same scale as the two OBJ axes.
    X-Axis Position the shoulder of the slider where zipper teeth insert on the X-axis 0.

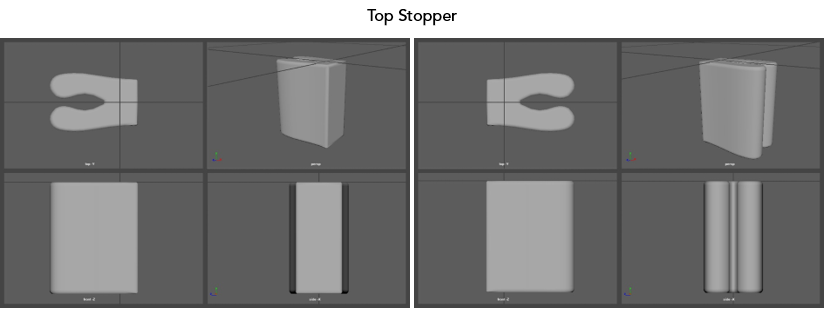

    Y-Axis Top Stopper
    Position the point where the most end (top) of the zipper blade is in contact with the Y-axis 0.

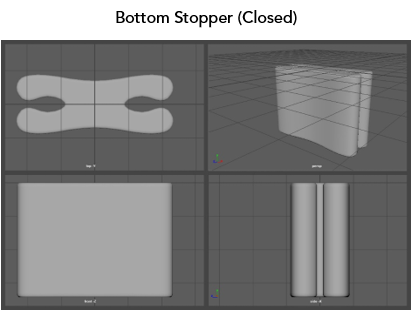

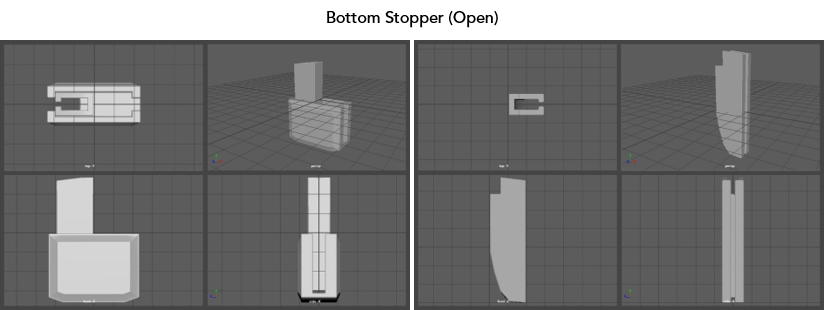

    Bottom Stopper
    When the slider is lowered all the way, the point where it touches the bottom of the slider is positioned on the Y-axis at 0.
    Z-Axis Position the Z-axis 0 where the side of the zipper teeth is located.

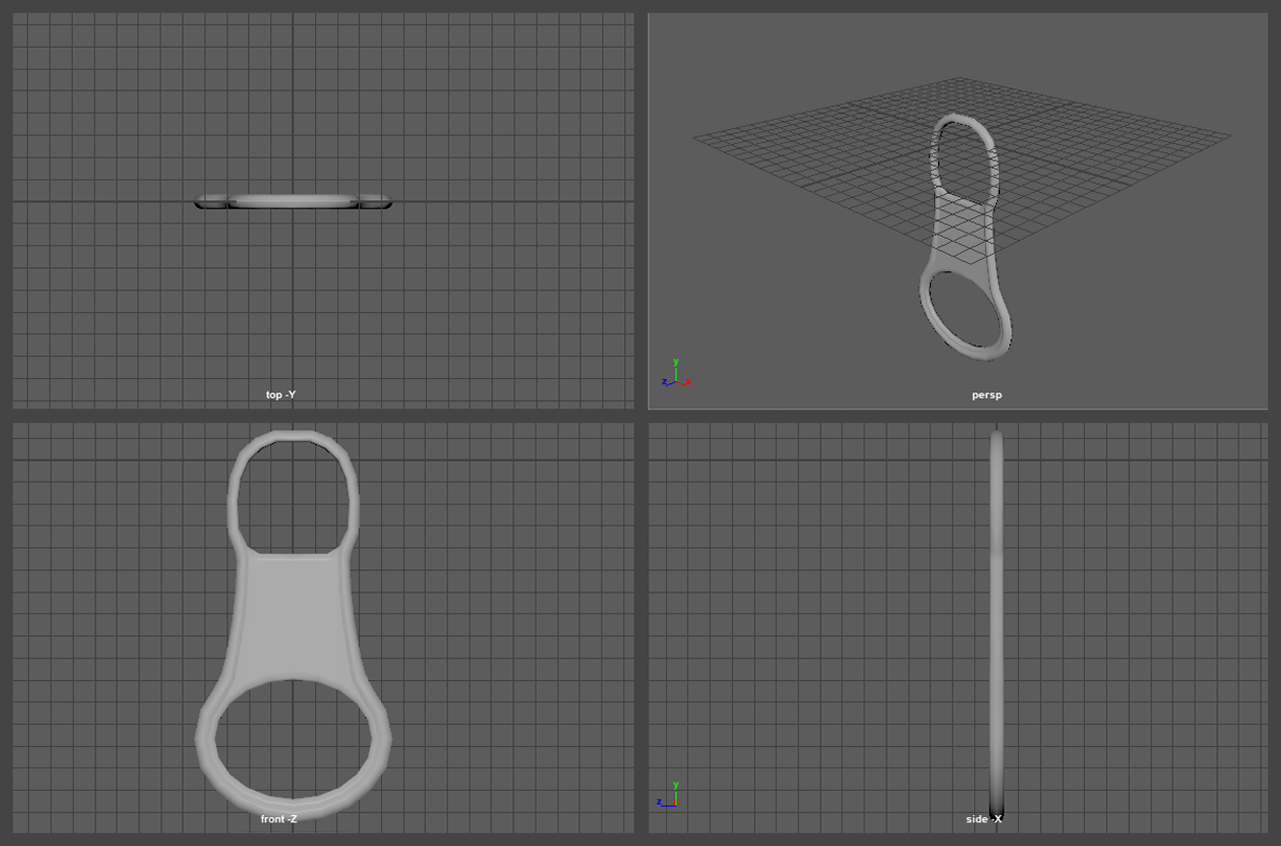

    Puller
    Place the position where the slider is attached at the origin (0,0,0).
    ※Note: The puller position is adjustable within the CLO.

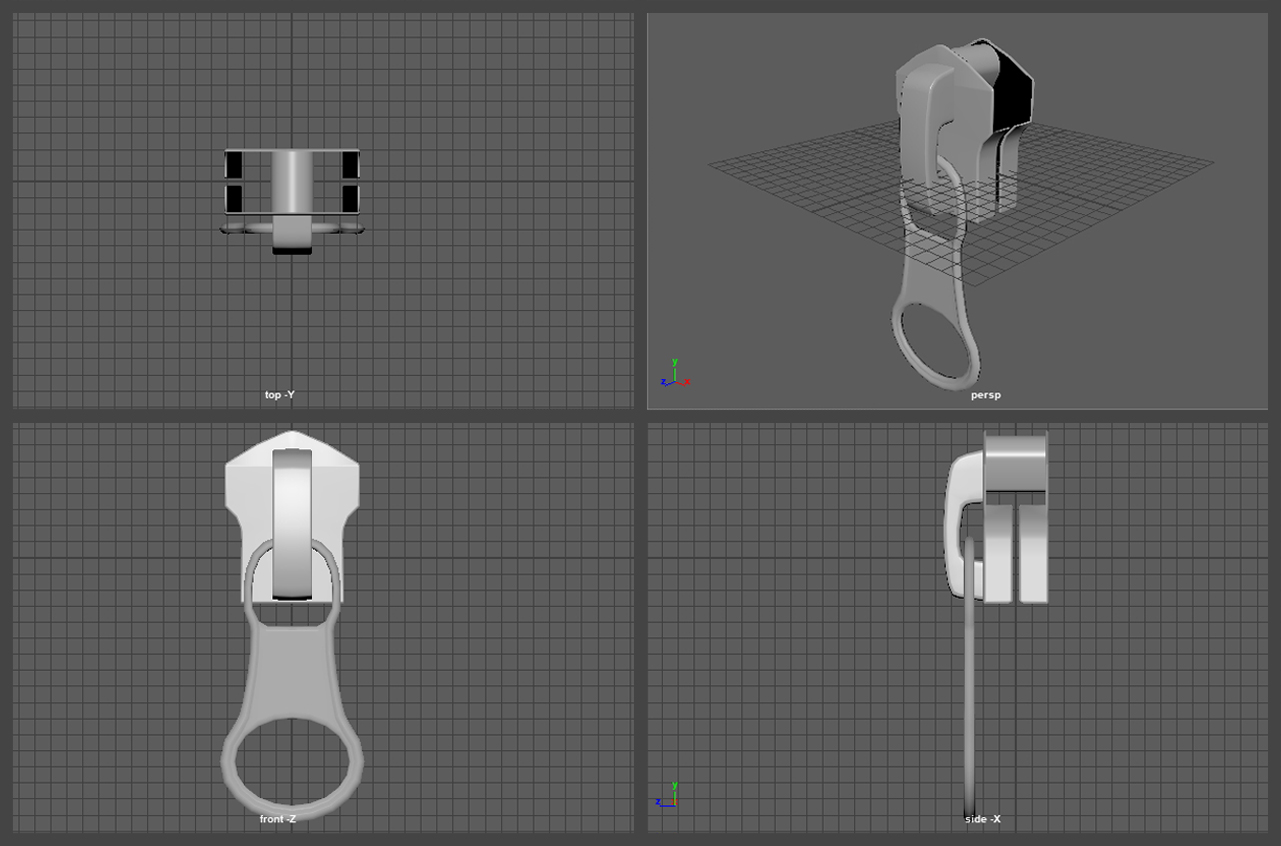

    Slider & Puller Create sliders & pullers are created based on the slider axis.



Register OBJ

  1. Select the tool/menu indicated in Location.
    → The OBJ registration window appears.

  2. After setting the following options, click the OK button.
    Basic Type Select the type (Slider, Puller, Stopper, Slider & Puller) to register the OBJ.
    Name Enter a file name.Enter a file name.
    Scale Adjust the size of the OBJ.
    Axis Conversion Change each axis of the OBJ.
    File

    OBJ

    Slider / Puller Load the OBJ file you want to register.
    Stopper
    (Top, Bottom-Open)

    Load each Top and Botton-Open OBJ file.

    The first OBJ loaded is placed in the direction of the zipper created first.

    Slider & Puller
    (ver 6.2)

    Load a combined zipper OBJ file.

    Select and assign the mesh item of Slider and Puller in the Select Mesh menu.

    Preview Check the imported OBJ file in advance.
    Puller Position
    Adjust the sliders on the X, Y, and Z axes to set where the puller is attached.
    ※Note: This setting is for Slider and Slider & Puller types only.
    → The object is saved in the path below:
      Assets ▶ Materials ▶ Hardware_and_Trims ▶ Zipper ▶ Each object's folder
