New in CLO 2025.0

Allpy the Soft Selection options to the Pinching function during simulation.
- Click the
Simulate tool in the 3D toolbar.
- Click and hold the
Select/Move tool for more than 2 seconds, then click the
Advanced Pinching tool.

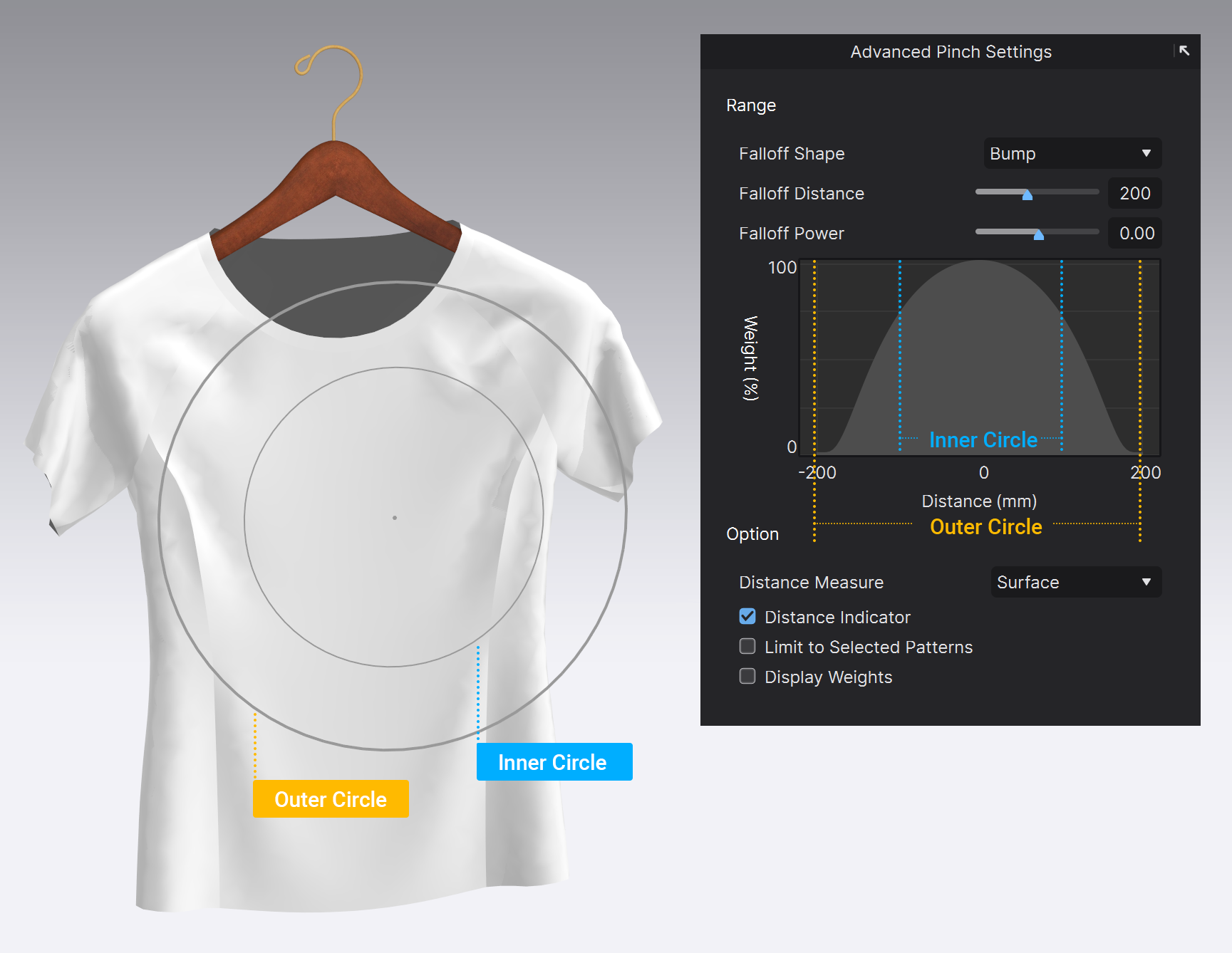

- Set the options in Advanced Pinch Settings window.

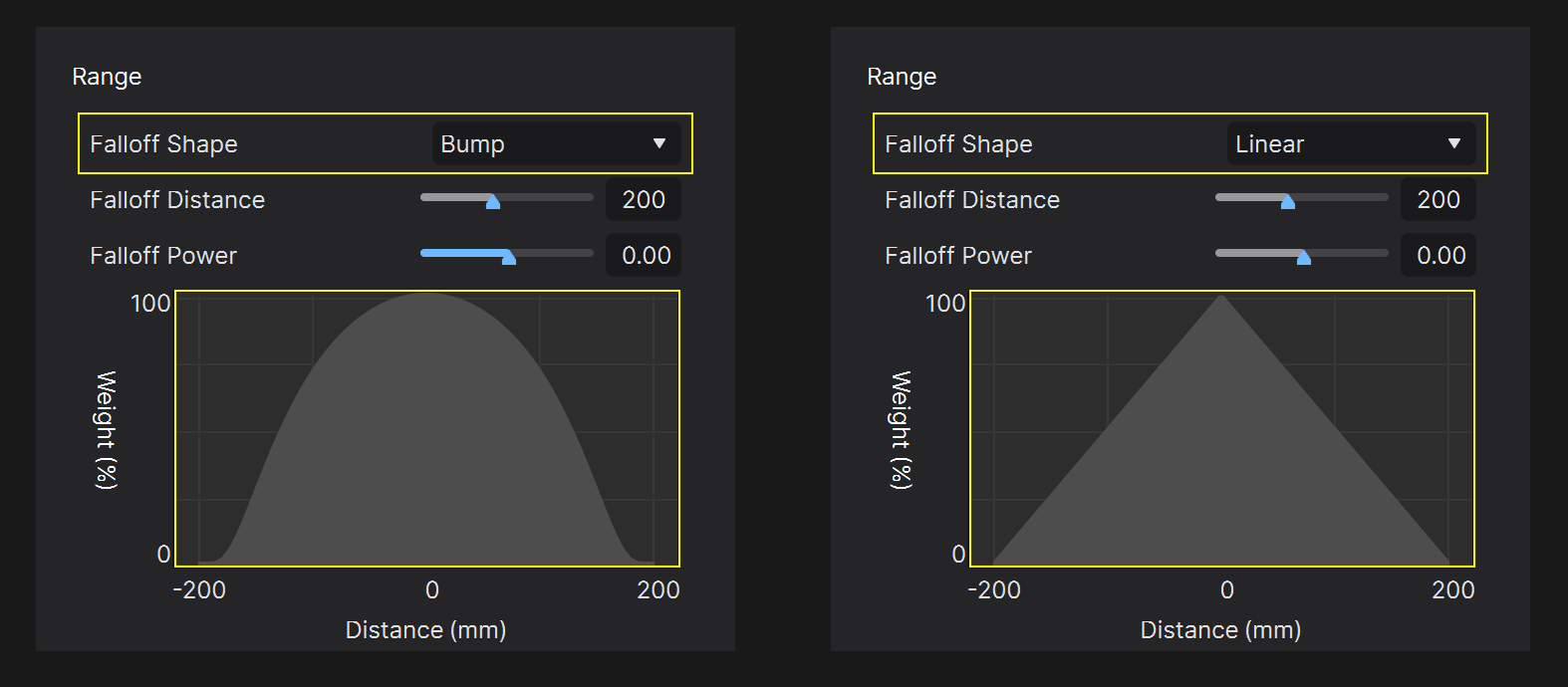

Option Description Range The shape graph reflects the selected Falloff(Shape*Distance*Power) and cannot be manipulated directly. Falloff Shape Select the Falloff Shape: Bump or Linear
Falloff Distance Set the distance of the selection range to the radius:
Mix: 1, Max: 500

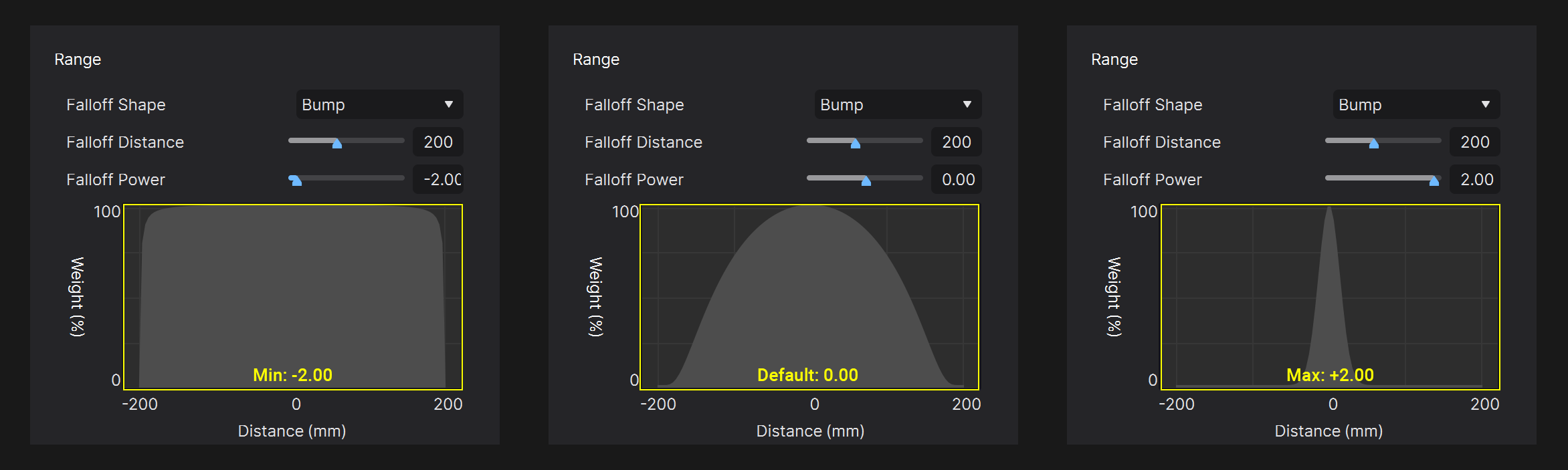

Falloff Power A value that sets the strength of falloff. (Min:-2.0, Max:+2.0)
Options Distance Measure How the distance from the picking point is measured.

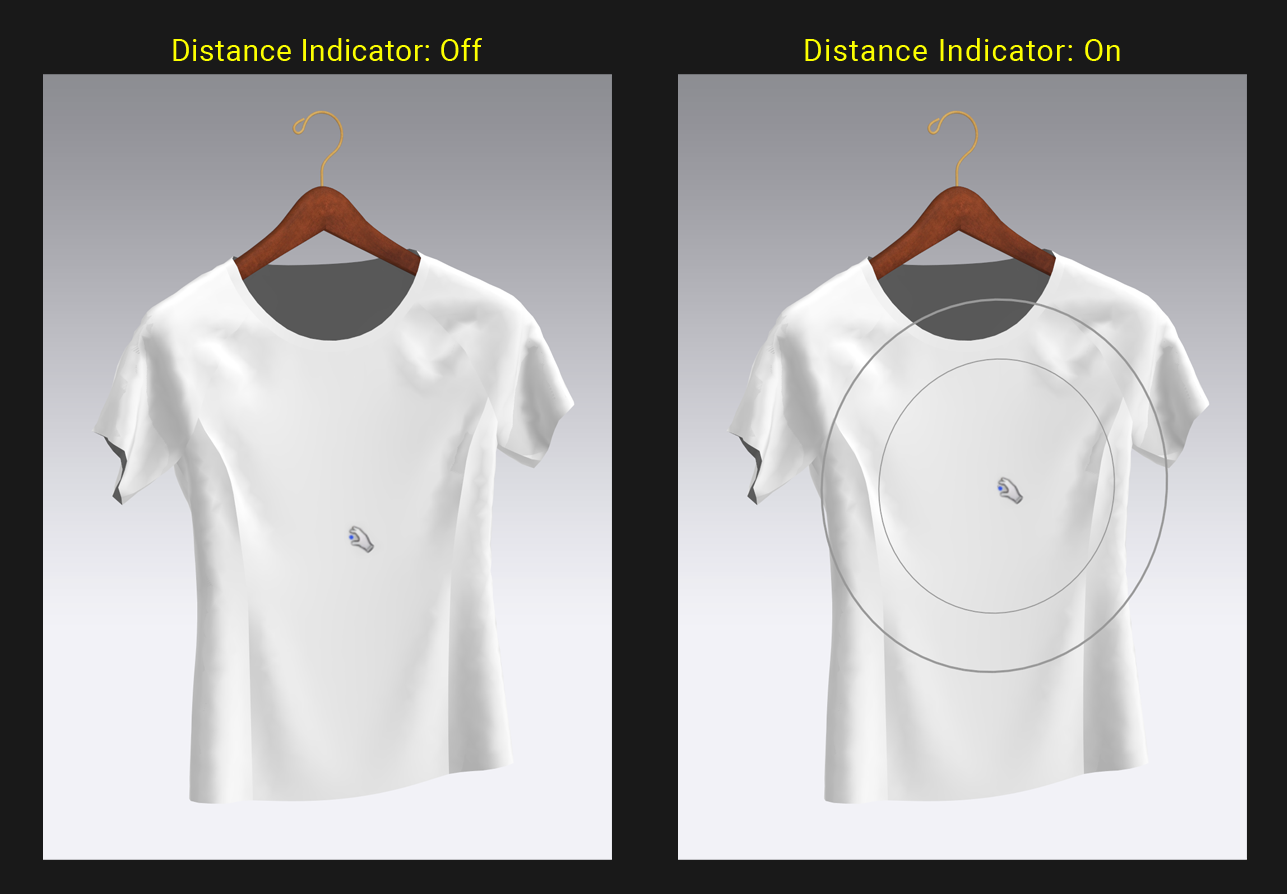

Surface When multiple layers of patterns are together, only one independent layer will be selected. Straight Select all patterns within a certain distance from the picking point regardless of the layer selected. Distance Indicator Indicates the Falloff Distance/Power values using 2 concentric circles around the pinch icon. When turned off the circles will disappear.

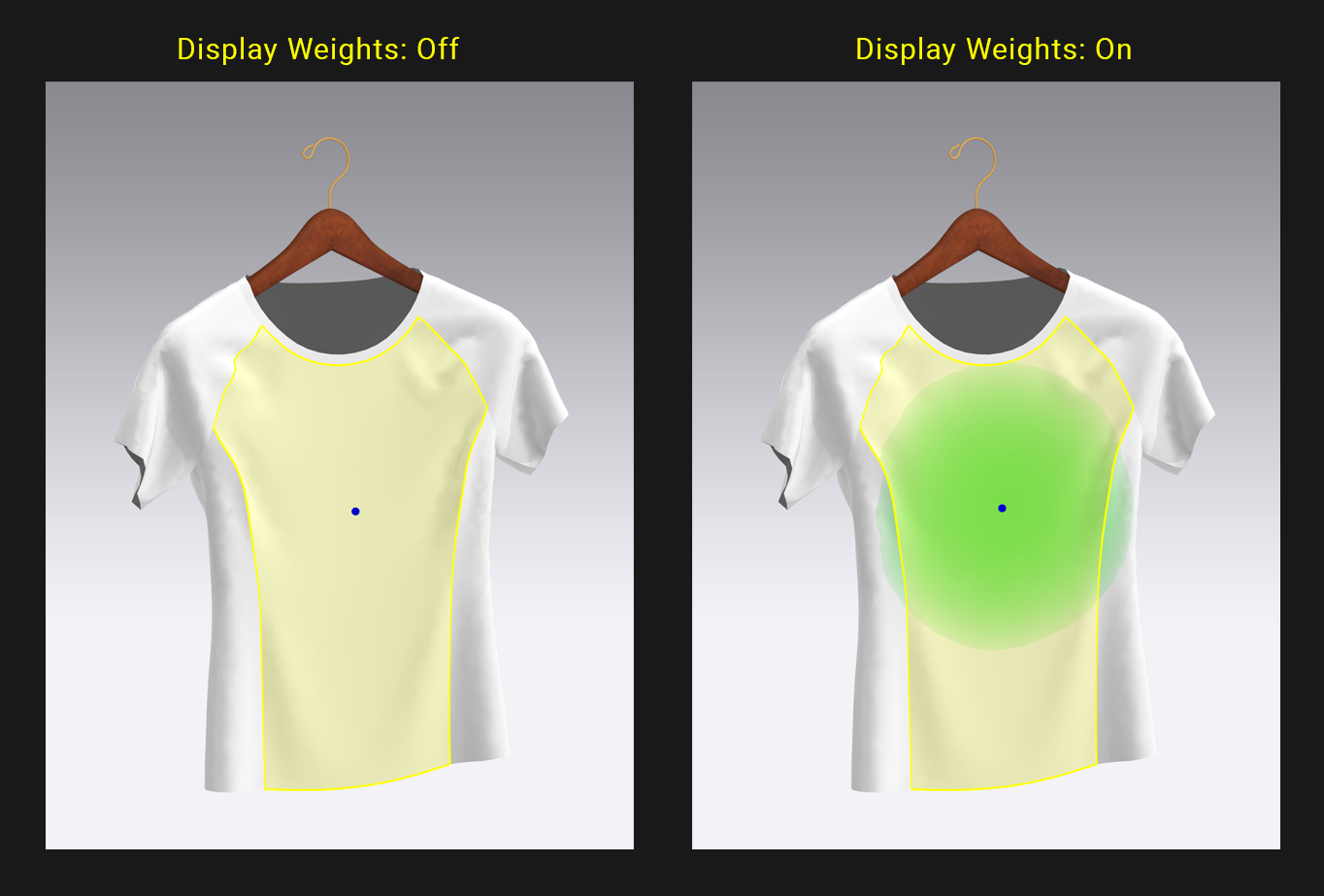

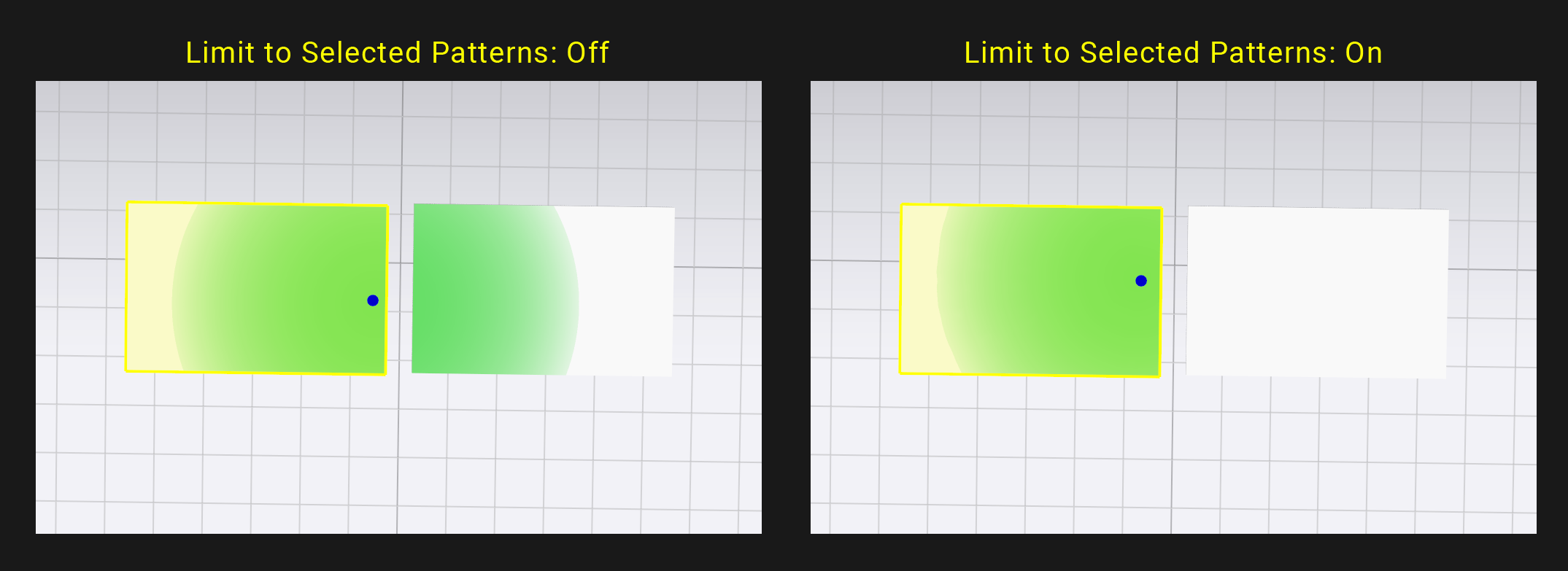

Limit to Selected Patterns Display Weights Display a contrasting color to the mesh where the weight value is applied.
- Modify the Range and Option values and freely pinch the pattern.
