Import other PBR maps once after importing a Base Color Map.


Prepare PBR Images

1. Gather all PBR map images in the same folder on the PC.

2. Change images’ names according to the file naming rule.
   → Apply the rules for importing all PBR Maps.



File Naming Rule

Follow the image naming rule with 3 components with the order 'Image Name_PBR Map Name'

• Image Name
  It should be placed at the beginning. The name can be customized.
  Use the same image name to recognize that those map images are in the same group.


• Underscore _
  • It should be placed in the middle.


• PBR Map Name
  It should be placed at the end. The name needs to follow the chart below.
  Affect the image import position in CLO Property Editor.

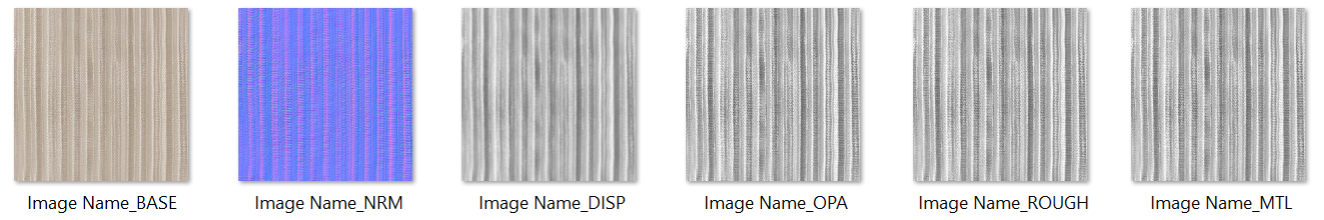

  Property Editor	PBR Map Image Name	Example
  Base Color Map	Image Name   Image Name_BASE   Image Name_color Image Name_COL   Image Name_diffuse Image Name_DIFF
  Normal Map	Image Name_normal Image Name_NRM
  Displacement Map	Image Name_displacement Image Name_DISP
  Opacity Map	Image Name_opacity Image Name_OPA Image Name_alpha Image Name_ALP
  Roughness Map	Image Name_roughness Image Name_ROUGH
  Metalness Map	Image Name_metalness Image Name_MTL

📝Note:

• Uppercase and lowercase letters are acceptable.
• Image Name can be in English or Chinese wording.

Import PBR Images

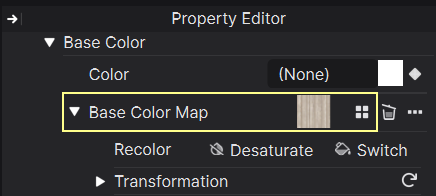

1. Import a Base Color Map in Property Editor; or add a new Base Color Map to replace the existing Base Color Map in Property Editor.

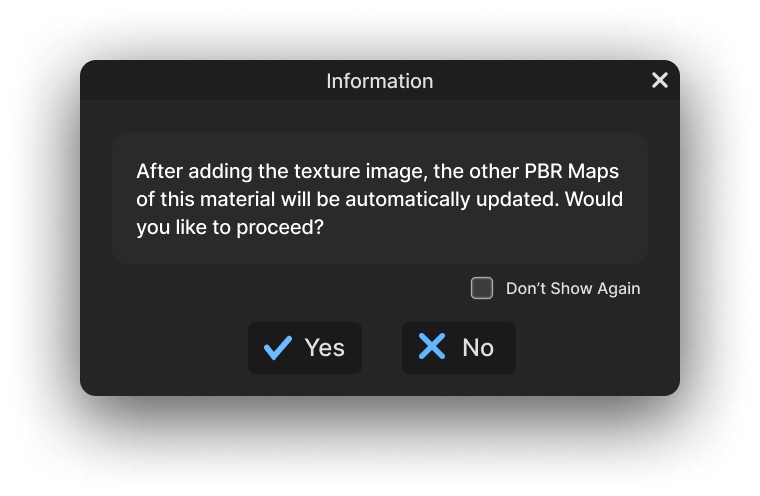

2. Click Yes or No in the popup menu.
   → Click Yes to add Base Color Map and other PBR maps in Property Editor simultaneously.
   → Click No to add Base Color Map only. Other PBR maps in Property Editor won't be imported or updated.
