Set Properties

Set Options

Set the graphic properties.


Set Properties

By Graphic Style; Applies changes to all graphics that use the same style.

1. Click the Graphic Style in the Graphic tab in the Object Browser.


2. Set properties in the Property Editor.

   Properties	Description
   Information	Name/Item No.	Enter a name or an item number of the graphic.
   	Classification	Assign the graphic type among Embroidery, Logo, Print, Wash (Jeanologia).
   	Teckpack (CLO-SET)	Check whether to include the graphic in the tech pack. Assign the classification of the graphic as per its purpose.
   Material	Print Type	Set the print type of the graphic (Crack, Vintage Distress, Golden Foil). When you select the Blend with Base Fabric type, all PBR maps (Normal, Displacement, Opacity, Roughness, Metalness maps) of the fabric applied to the pattern are automatically applied and blended with the fabric. Otherwise, you can selectively apply only specific maps by checking the 'Use the same map as the fabric' option for each map.
   	Set the graphic's material, texture, color, and transparency.
   Graphic Transformation	Adjust the width and height of the graphic to transform its size.





   By Each Graphic; Applies changes only to each selected graphic, even if they share the same style.


   1. Click the Graphic using Transform Graphic tool in the 2D toolbar.

   Properties	Description
   Graphic Configuration	Face	Place the graphic on the front, back, or both sides.
   	Tile	Repeat the graphic in its original size along the X-axis, Y-axis, or across the entire pattern.
   	Over Seamline Watch Video	Place the graphic on the seam of patterns. Graphic does not appear when the difference of the seam is over the allowable extent.  Graphic may not be matching when it is placed over the curves. It this case, deactivate this option and adjust the graphic manually. Graphics are also created for patterns sewn in two layers, such as pockets.

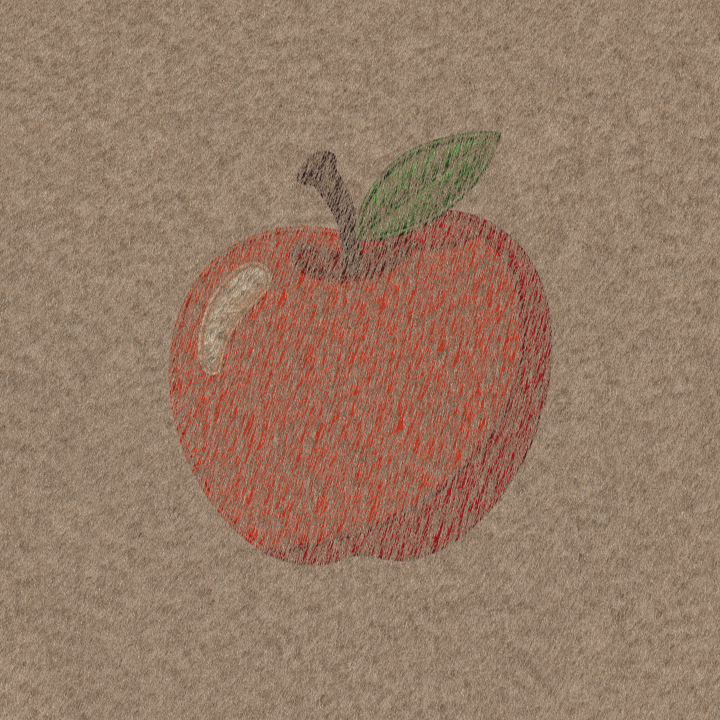

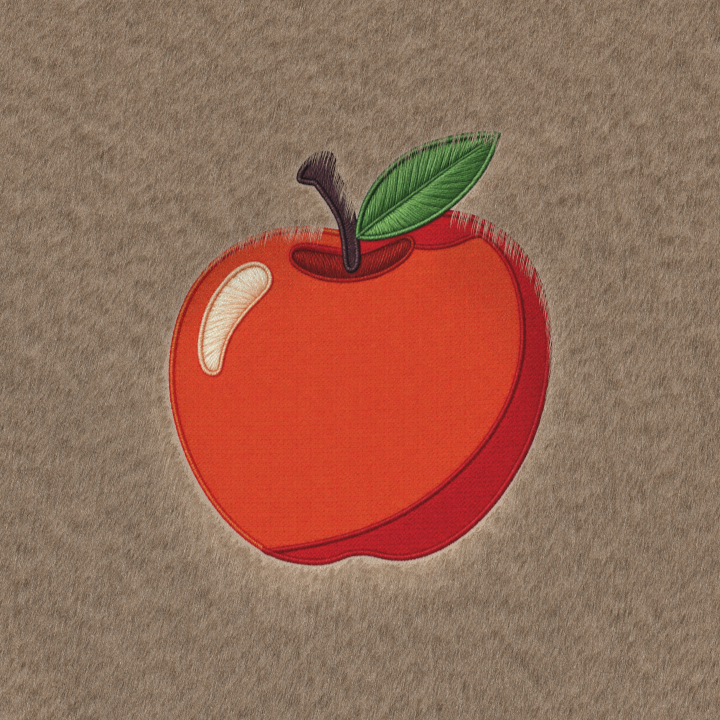

   	Fur Trimmer	Show the graphic clearly when using Fur (Render) and Fur_Strand materiels. No fur is generated in the graphic area.  Example: Fur Trimmer = Turn on vs. Turn off
   Graphic Transformation	Adjust the rotation angle and Z-offset of graphic.
   2D Measurements	Click the desired measurement option to check the position within the 2D pattern in dimensions.
   	Transform Graphic	Precisely place graphics by entering exact position values.

Set Options

1. Right-click on the Graphic using Transform Graphic tool in the 2D toolbar.


2. Select the option as needed.

   Options	Descriptions
   Delete	Delete the selected graphic.
   Copy/ Paste	Copy, Paste, and Mirror Paste the selected graphic.
   Order (2D)	Set the placement order of the graphic.
   Rotate	Set the rotation angle of the graphic.
   Tile	Repeat the graphic in its original size along the X-axis, Y-axis, or across the entire pattern.
   Revert to Original Size	Restore the transformed graphic to its original size.
   Flip	Flip the graphic horizontally or vertically.
   Trace as Internal Shape Watch Video	Trace the graphic as an internal shape according to its outline. 📝Note: The clearer the image, the more accurately it is recognized. For complex and colored images, tracing is based on the outermost outline.
   Custom Measurements Watch Video	Measure the distance from a specific point of the graphic to its outline and create a measurement. The created measurement is displayed in the Property Editor, and you can rename or delete it as needed.
