Show Pattern Annotations and Symbols

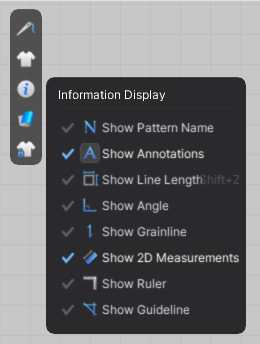

To show or hide both pattern annotations and symbols, in the 2D window's vertical toggle menu, hover above the Information Display icon and select Show Annotations. When either the pattern annotation or symbol tool is in use, the visibility of both annotations and symbols is activated by default.

Importing a DXF File with Pattern Annotations

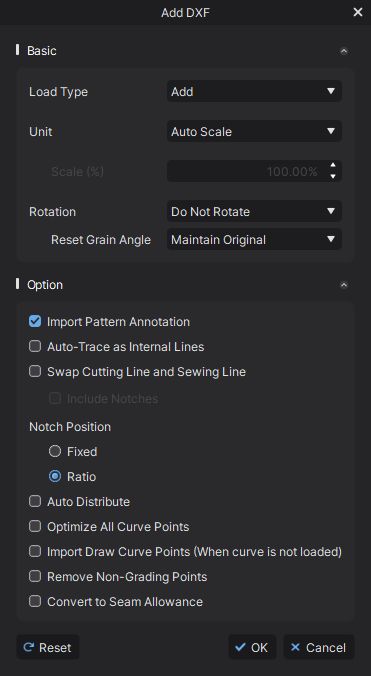

To import pattern annotations along with a DXF file, check the Import Pattern Annotation option in the Add DXF window.
