Objective

Seamlessly generate texture maps with scanned or captured images, and check the results in real-time within the 3D window.

Location

Object Browser ▶ Fabric ▶ Texture Generator

Operation

Open Texture

1. Click the tool/menu indicated.
   → Texture Generator Opens.

2. Click Open at the left bottom of Texture Generator to open the texture image.
   → The size and resolution of the textures loaded are displayed at the top.
   → For XTEX files, other maps (Normal map, Opacity map etc.) in the folder are automatically loaded.


Select Area of Texture

1. Find and click on the minimum area where the fabric pattern repeats. ▶ Drag to select.
   → The optimized result analyzed within the selected area will show up.
   → The analyzed result is repeated in the preview window at the bottom.
2. To adjust the area, move the point of the selected area.
   → It is analyzed automatically again within the selected area.


3. To maintain the selected area, click Manual at the right bottom of the selected area.
   → The selected area is maintained and repeated.

Set Options

The options below can be set only in Auto mode since they work based on the analyzed results.

• Fabric Type
  Select fabric type for more accurate analysis.
  The analysis is based on Normal Map, thus it is only vaild with the existence of Normal Map.
  - Plain: Solid fabric without repeated patterns.
  - Repeat Pattern: Fabric pattern is regular.
  - Random Color Pattern: Fabric pattern is irregular.

• Equalize

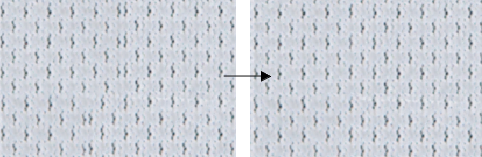

  Adjust the value to equalize the difference in brightness caused by crease in the fabric.

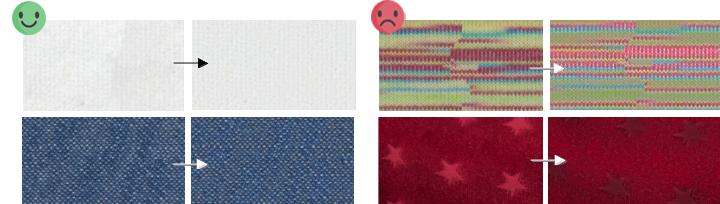

      ※ Note: Depending on the fabric, some colors or patterns may be distorted. Refer to the attached image. below.


• Smooth
  When the connected part of the fabrics are not smooth by crease in the fabric, align weave areas equally.


• Show/Hide Grid
  Click Show/Hide icon in Preview window at the bottom to check the grid of the repeated texture.

Save Texture Image

1. Click Save at the bottom to save the generated texture as Image file.
   → Save Textures window appears.

2. Select the textures and map type to save and click OK button.
   → Each map name is automatically applied after the set name and saved as PNG files.


Apply Texture

1. When the texture generating is complete, click the Apply & Close button at the bottom right of Texture Generator.
   → The texture is applied to the fabric simultaneously and the Texture generator is closed.
