Edit Blocks

Follow

List of Contents

Edit Patterns

Replace Patterns



Objective

Open and edit Patterns in provided Blocks from the Modular Configurator or replace them with your own.


Location

Modular Mode ▶ Block Editor



Operation

Edit Patterns

  1. Load Blocks from the Modular Configurator.

  2. Follow the indicated guideline below:

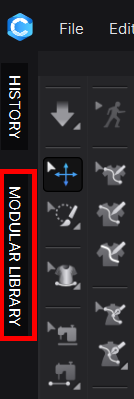

    Modular Mode ▶ Block Editor

  3. Select a Block to edit in the list of the Block Editor.
    → Remaining Blocks are frozen.

  4. Modify it with the edit_pattern.png Edit Pattern tool.

  5. Once the modification is done, Simulate the according Block when the rest of the Blocks are still frozen.

  6. Once the modification is completed, reselect the selected Block.
    → All of the Blocks are activated again.



Replace Patterns
  1. Load Blocks from the Modular Configurator.

  2. Follow the indicated guideline below:

    Modular Mode ▶ Block Editor

  3. Locate Patterns out of Block Boxes or delete them.
    → The Block Boxes remain in light grey.

  4. Add desired Garment files to substitute with.

  5. Click and drag the Patterns that are just loaded to matching Block Boxes.
    → The Patterns are linked with the Block Boxes.

  6. Sew the Patterns to Block Boxes.

  7. Select the according Block in the Block Editor, freeze the rest, then Simulate.

※ Note:

  • Selected Blocks in the Block Editor are also selected in the 2D window.

  • Editing Pattern in the Modular Mode is the same as the Simulation Mode.
    Deleting a segment or a point in a Pattern also deletes Sewing Lines between the Pattern and the Block Box.
