Edit V-Ray Image/ Video Properties

Follow

Objective

Configure image/ video properties depending on the final output of the rendered 3D Garment.




Location

Render Toolbar ▶ image_video_properties.png Image/ Video Properties ▶ Property Editor






Operation

  1. Follow the indicated guideline below:

    Render Toolbar ▶ image_video_properties.png Image/ Video Properties ▶ Property Editor


    → The image/ video properties appear in the Property Editor.

  2. Refer to the below table and edit the properties as needed.


    Option Description
    Image/Video





    Select in which media the 3D Garment is to be extracted.
    Image Extract the rendered 3D Garment as a single image.
    Viewpoint Current View Render the 3D Garment with the current view.
    Custom View Select a view the 3D Garment is rendered from the Custom View.

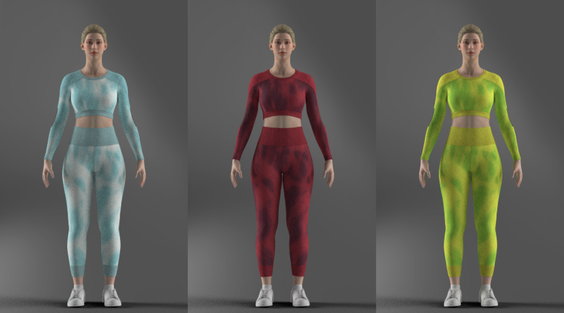

    Render All Colorways Render all colorways in the Colorway Mode (ver4.1.0).
    Turntable
    Images
    Extract the 3D Garment as a collection of rendered images, showing the 3D Garment in 360º.
    Image Count. Set the number of images to be rendered.
    Higher the Image Count is, from more view points the 3D Garment is shot.
    Direction Counterclockwise Renders the 3D Garment counterclockwise.
    Clockwise Renders the 3D Garment clockwise.
    Save Video
    (ver.5.1.0)
    Save the rendered video as a video file.
    Total Duration Set duration for the whole video.
    Frame Duration Set duration for each frame.

    Turntable Video

    (ver5.0.0 and below)

    Extract the 3D Garment as a rendered video, showing the 3D Garment in 360º.
    Video Frame Count (sec) Set the number of frames to be rendered. More the rendered frame is, smoother the video is.
    Duration (sec) Set the total record time.
    Video Frame Duration (sec) Set the record time for each frame.
    Direction Counterclockwise Renders the 3D Garment counterclockwise.
    Clockwise Renders the 3D Garment clockwise.
    Video Codec Select the codec to record the Turntable Video.

    Animation

    (ver.5.1.0)


    Render and export recorded animation as images or a video by selecting the frame region.
    Region Entire Region Render the whole recording.
    Play Region Only render the Play Region designated by the user.
    Save Video
    (ver.5.1.0)
    Save the rendered animation as a video file.
    FPS Set the frame count for the video.
    Image Size Set the size for the final render image.
    Select among the provided options, or select Custom to input values arbitrarily.
    Orientation Portrait The image is laid out vertically.
    Landscape The image is laid out horizontally.
    Width Set the width of the image.
    Height Set the height of the image.
    Maintain Ratio Toggle the option On, to maintain the ratio between Height and Width of the image.
    Resolution (ppi)

    Adjust the image's resolution.

    Color Correction

    (ver.4.2.0 and below)

    Exposure Set the Exposure value.
    Higher the value is, brighter the image is as it is exposed to more light.
    Contrast Set the Contrast value.
    Higher the value is, more contrasted the dark area and the bright area.
    Background Color Assign the background color.
    Transparency Make the background transparent.
    Save File Name Name the saved file.
    Project Name (ver5.1.0) Name the saved file with the Project file's name.
    Custom Name Name the saved file arbitrary.
    File Path Designated the file saving path.
    Click on the show_in_saved_folder.png Show in Saved Folder tool to open the designated saving path and view saved images.
    File Format Choose the format of the rendered image between JPG and PNG (ver4.2.0


※Note: Use the Open, Save buttons on the top of the Property Editor to save, open, and reuse the setting.
